1 Main purpose and scope of application

This machine is widely used for tensile, compressive, and bending mechanical performance tests of metals and non-metals. It is suitable for various test fields such as quality supervision, teaching and research, aerospace, iron and steel metallurgy, automobiles, rubber and plastics, woven materials, etc.
2 Main technical parameters

No.	Name	Parameters
1	Maximum test force	50kN
2	Test force accuracy	±1%
3	Test force measurement range	2%～100%， Automatic gear shift all the way
4	Test power resolution	0.01%Fs
5	Deformation measurement range	2%～100%
6	Deformation measurement accuracy	±1%
7	Displacement resolution	0.001mm
8	Relative error of beam displacement indication	±1%
9	Speed range	0.01mm/min～500mm/min， Stepless speed regulation
10	Relative error of beam speed	±1%
11	Maximum tensile space	750mm
12	Maximum compression space	750mm
13	Test space width	600mm
14	Maximum stroke of beam	1000mm

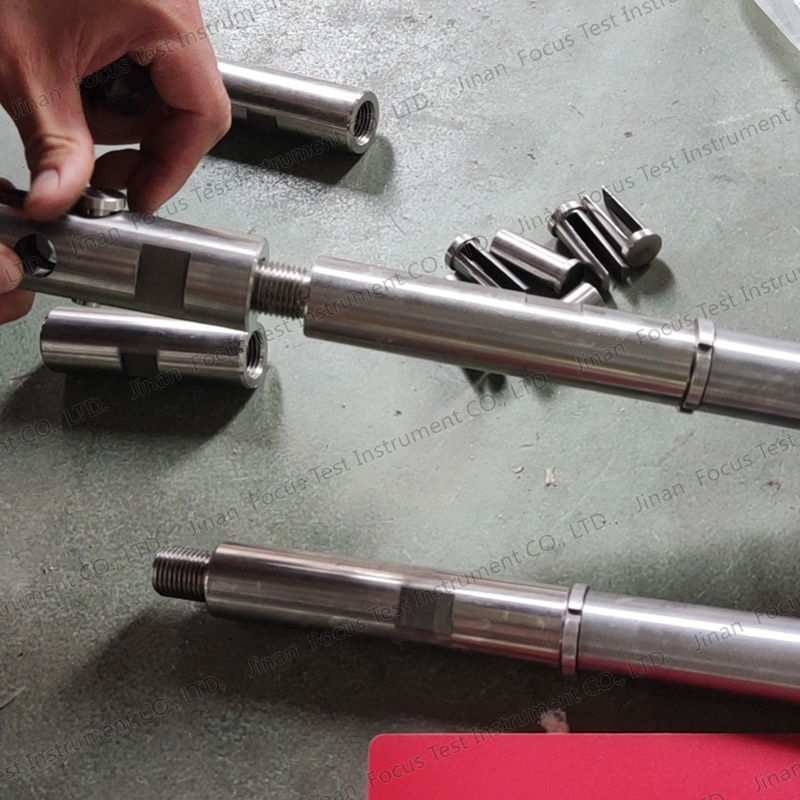

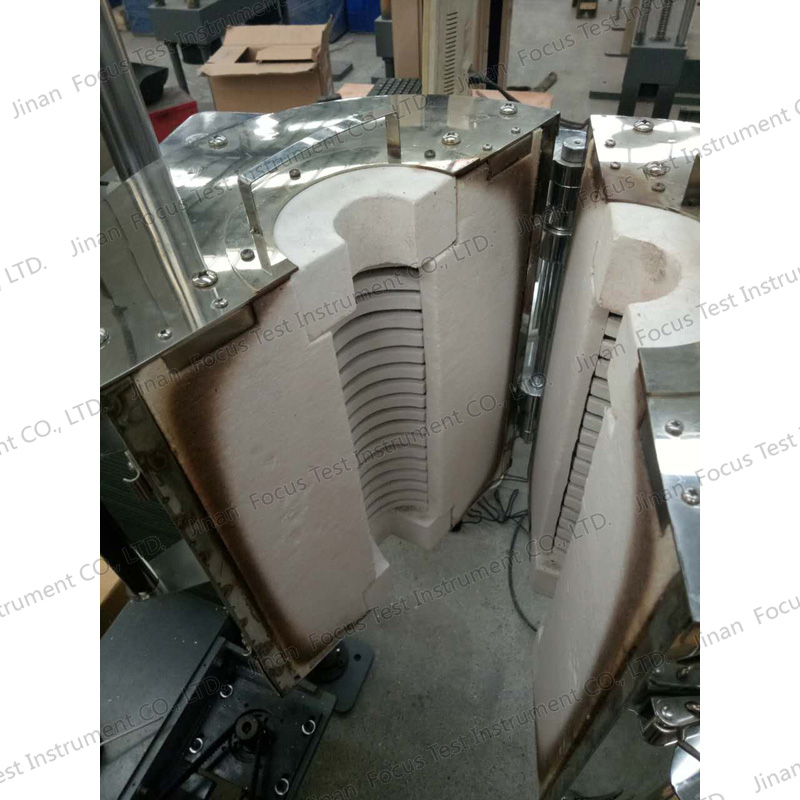

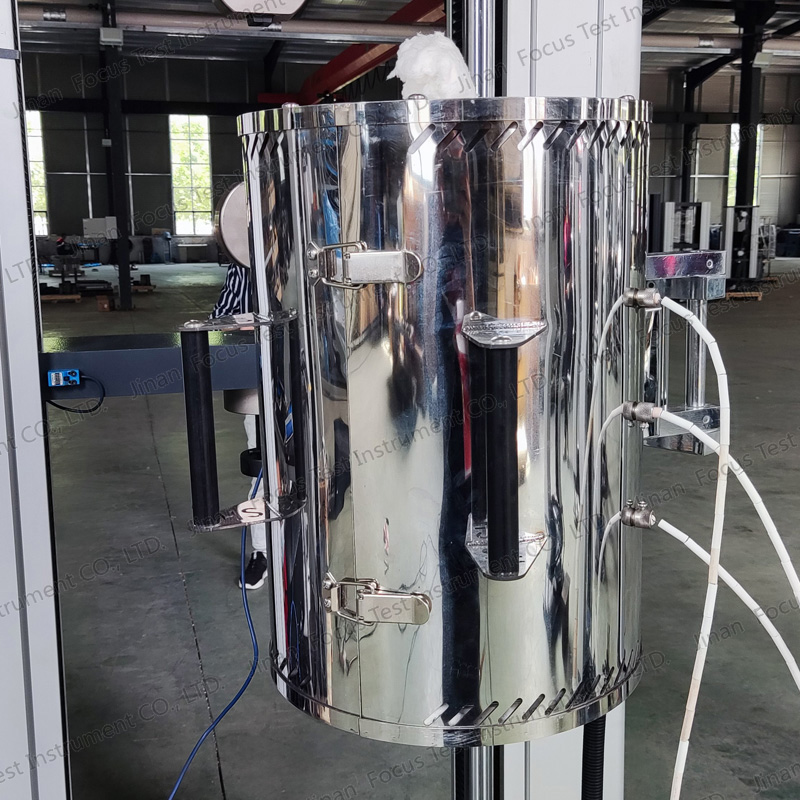

15	High Temperature Furnace Round + Flat High Temperature Tensile Fixture	300°C - 1200 °C  (can choose any temperature)
16	Host quality	500kg
17	power supply	Single Phase 220V, 50Hz
