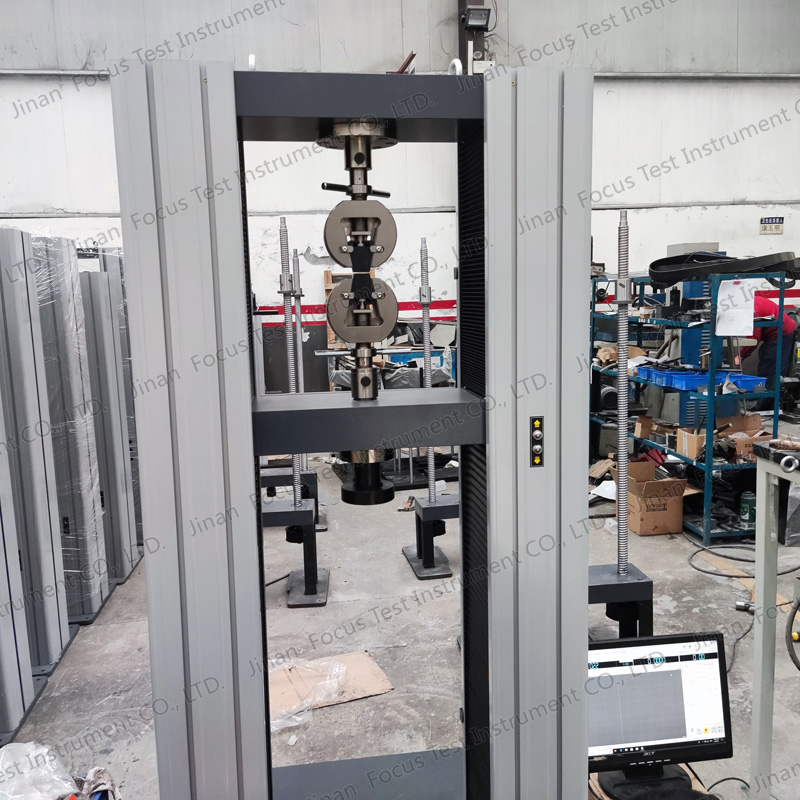

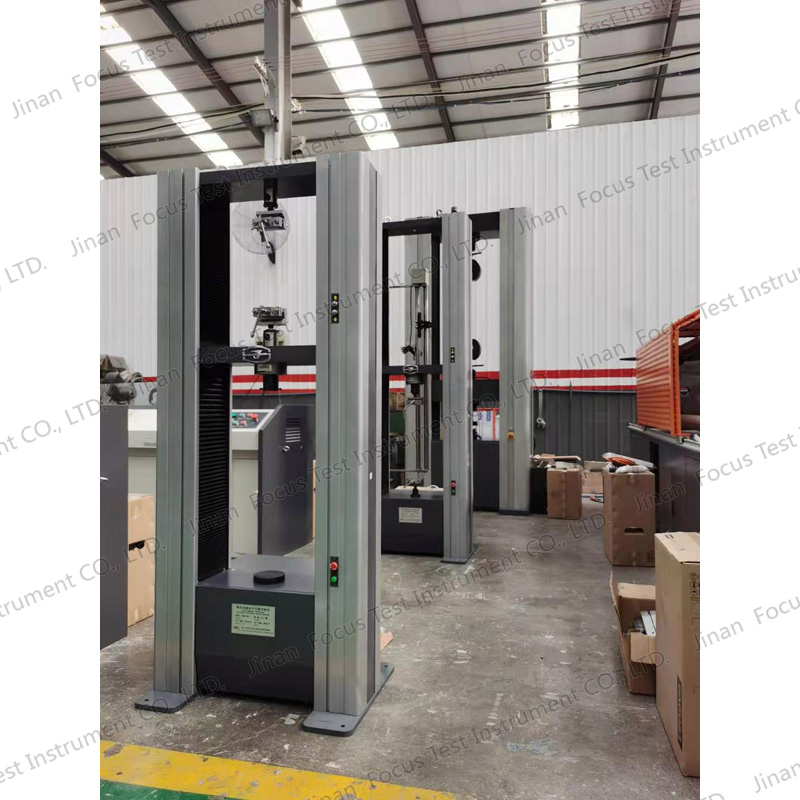

Double Column Electronic Universal Testing Machine
NO:WDW and WDW-S (double column), 2kN - 600kN, metal non-metal material tensile strength test machine
Share With:
Easy ways to get the answers you need. Send E-mail WhatsAPP/Wechat
+86-15254140530
WDW series and WDW-S Series testing machine with Hyun Kim aluminum cover, spray or plated beams, AC power or precision AC servo motor, imported precision ball screw; advanced chip technology, professional design of data acquisition, amplification and control systems, test force, deformation amplification, A / D conversion process to achieve a fully digital adjustment.
| The main technical parameters | WDW Series | WDW-S Series | ||||||
| 2 | 10 20 | 50 | 100 | 200 | 300 | 500 | 600 | |
| Structure type | floor structure | |||||||
| Max test force（KN） | 2 | 10 20 | 50 | 100 | 200 | 300 | 500 | 600 |
| Tester Level | 1 (0.5) | |||||||
| Operation | Computer control (Chinese or English software operation) | LCD digital display | ||||||
| Force measurement range | 2% or 0.4% -100% -100% of the maximum test force maximum test force | |||||||
| Accuracy of testing force | Better than ± 1% of indicated value (± 0.5% special selection) | |||||||
| Deformation display error | ± 1% (or ± 0.5%) | |||||||
| The minimum test force resolution | 0.01N | |||||||
| Beam displacement accuracy | ±1%（±0.5%） | |||||||
| Deformation accuracy | Better than ± 1% (± 0.5%) | |||||||
| Speed range | 0.01-500mm / min or 0.01-300mm / min | |||||||
| Test trip | ≥600 mm (can be customized according to customer) | |||||||
| Test space adjustment mechanism | AC servo motor or AC stepper motor, low noise belt drive | |||||||
| Standards compliant | In line with national GB / T2611 standard | |||||||
| Protection | Overload protection, limit protection | |||||||
| Power supply | 220 V or 380V | |||||||
| Working environment | Room temperature -45 ℃, humidity 20% -80% | |||||||

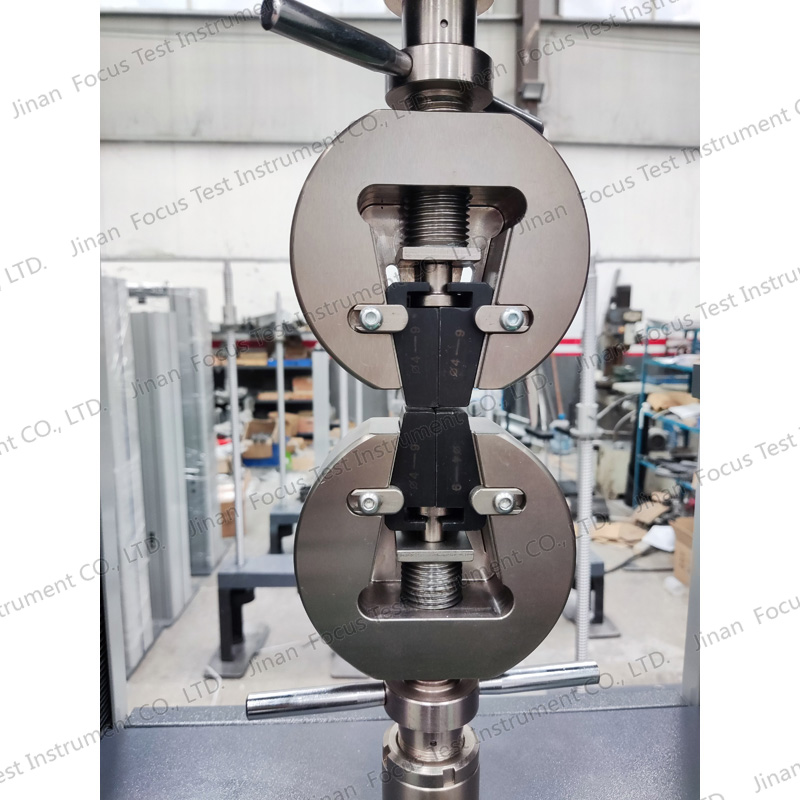

| Fixture form | According to customer requirements, configure the appropriate fixture. Special fixtures can be customized according to customers. | |||||||
The standard: GBT228 ISO: 6892 ASTM: A370 Other
Owned materials metal: plastic, composite materials, springs, clothing / footwear, wood, rubber / elastomer, foam materials, biomedical, line pipe, electrical / electronic, bonding, paper, textiles, film, components, ceramic / glass, food, packaging,Industry metallurgical industry, quality inspection centers, universities, industrial supplies, automotive / rail / ship manufacturing, aviation manufacturing, biomedical
Test type stretching: compression, bending, shear, peel, low cycle fatigue
Features
■ During the test the speed of moving beams automatically according to pre-set change, you can manually change;
■ Automatic switching depending on the load size to the appropriate range to ensure the accuracy of measurement data; zero test force measurement, calibration and archiving, without any analog adjustment links, highly integrated control circuit;
■ Automatic Calibration: The system can automatically show the accuracy of the calibration value;
■ Automatic saving: the end of the test, the test data and curves automatically saved;
■ process to achieve: the testing process, measurement, display, and analysis by the computer to complete;
■ batch test: The specimen of the same parameters, can be sequentially completed after a set;

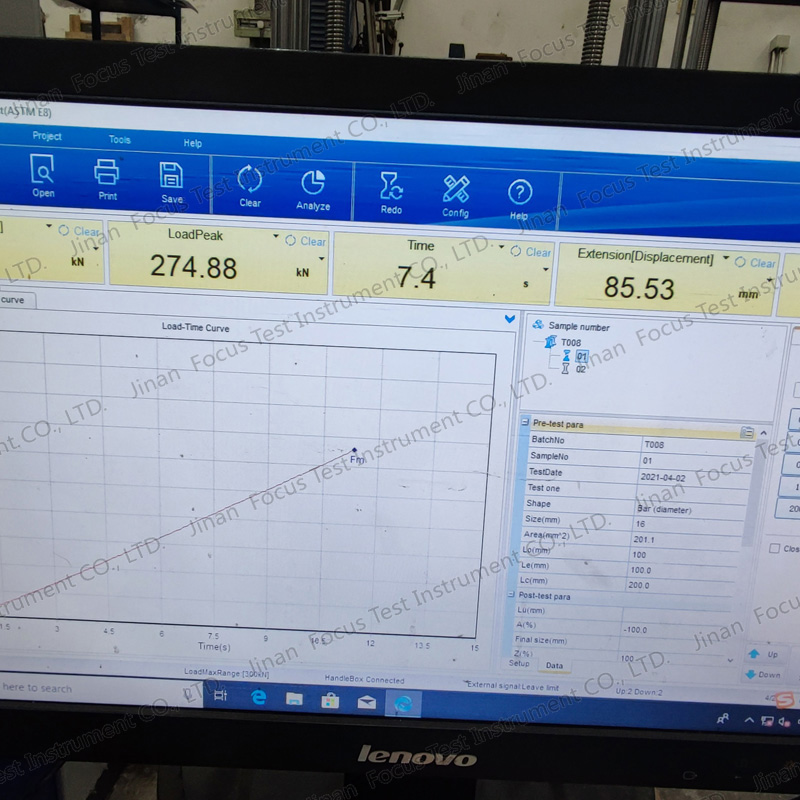

■ Test Software: Chinese and English interface, menu prompts, mouse operation.
