1. Main Purpose and Application

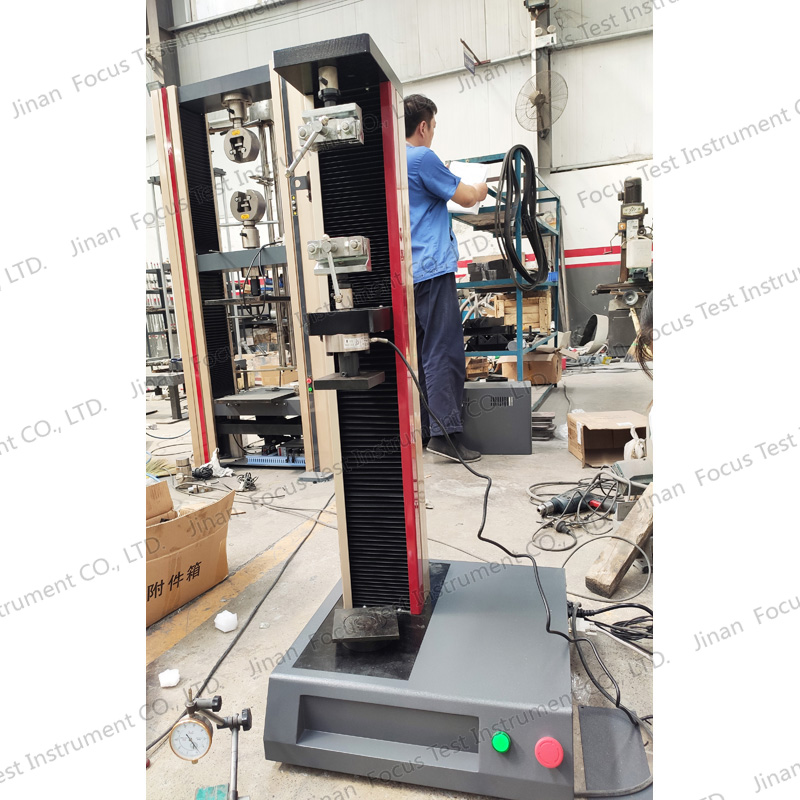

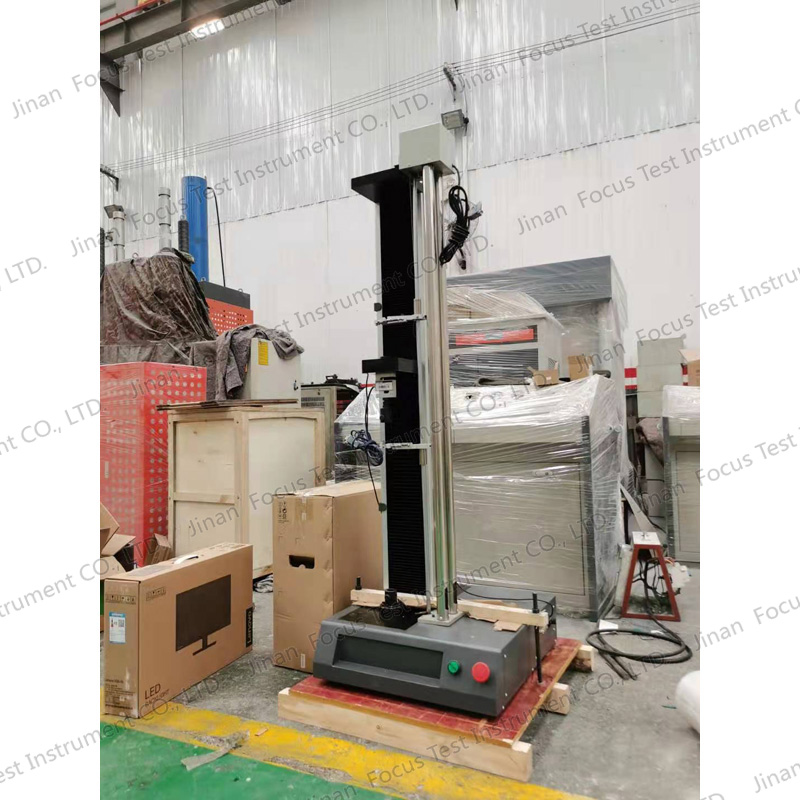

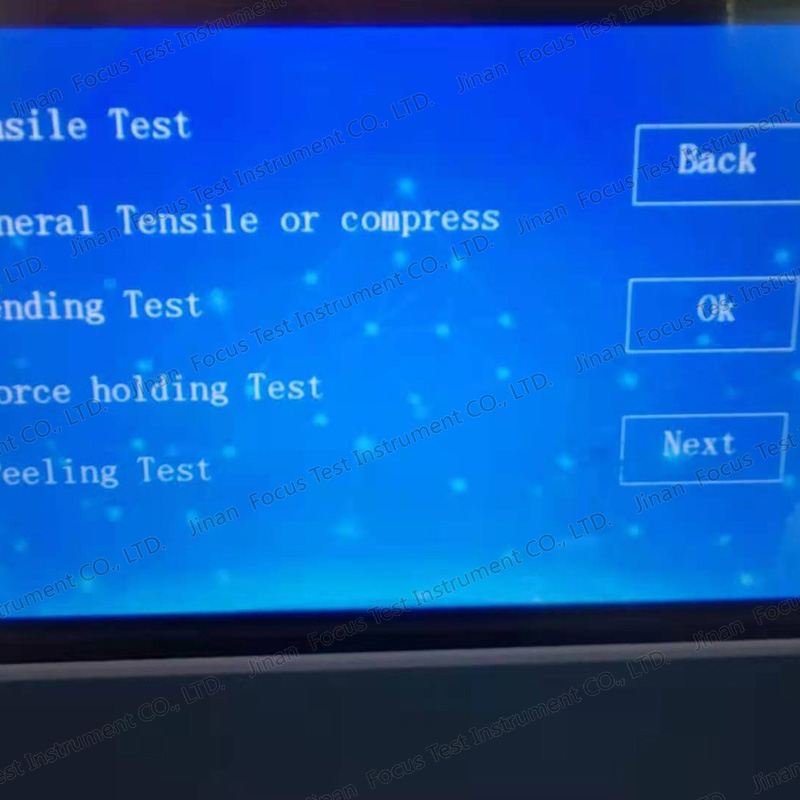

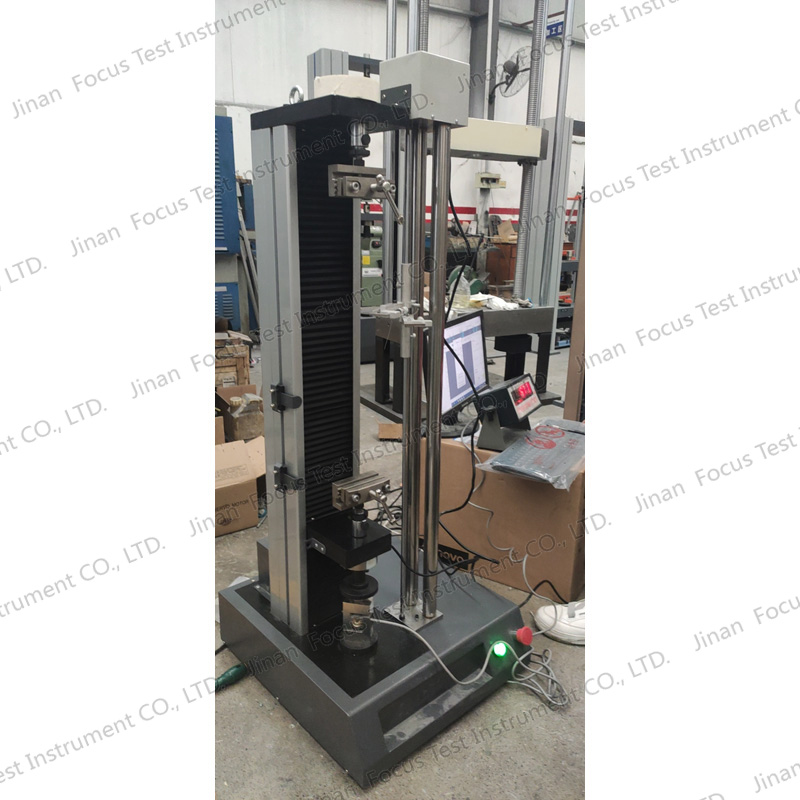

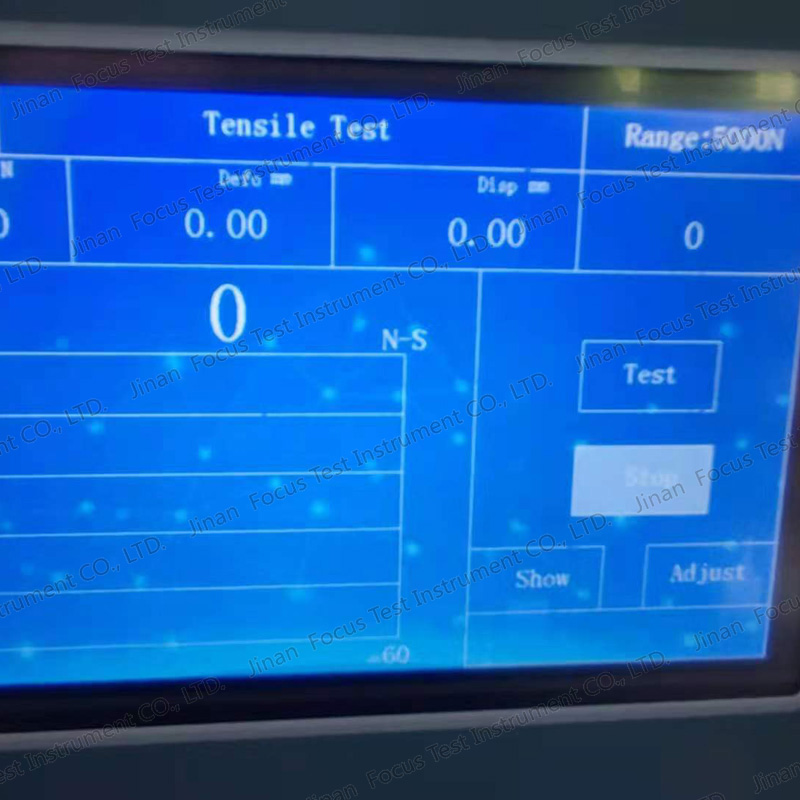

WDS-5 Digital display electronic universal testing machine is mainly used to test the tension and compression, 3 point bending, 4 point bending, peel, tear test etc. of various materials and the ring stiffness of cables, textiles, fibers, plastics, rubber, ceramics, food, and medicine, metal wires, metal steel wires, steel bars, rebars. In the tensile test, the technical indicators such as the maximum load-bearing tensile force, tensile strength, elongation deformation, and elongation of the material are tested; in the compression test, the technical indicators such as the bearing pressure, tensile strength, and maximum compression deformation of the material are tested. After the test, the above detection parameters are automatically calculated by the main controller according to the test parameter conditions set at the beginning of the test, and the corresponding test results are displayed at the same time. After the test, the test parameters can be printed or saved in the controller. Prepare for query display.

2. Main Technical Parameters

No.	ITEM	Technical Specs
1	Maximum test force	5000N / 5 KN
2	model	WDS-5
3	Force measuring range	2%-100%
4	Relative error of indication	±1%
5	Relative error of test force indication repeatability	≤1%
6	Relative error of test force zero point	±0.1%FS
7	Speed range	0.01-500mm/min
8	Effective Tensile Test space	800mm
9	Effective Compressed space	800mm
10	Loading method	Electric
11	Power supply voltage	Single Phase 220V±10%，50Hz
12	Host size	500x411x1510mm
13	weight	95KG
