Product Superiority,

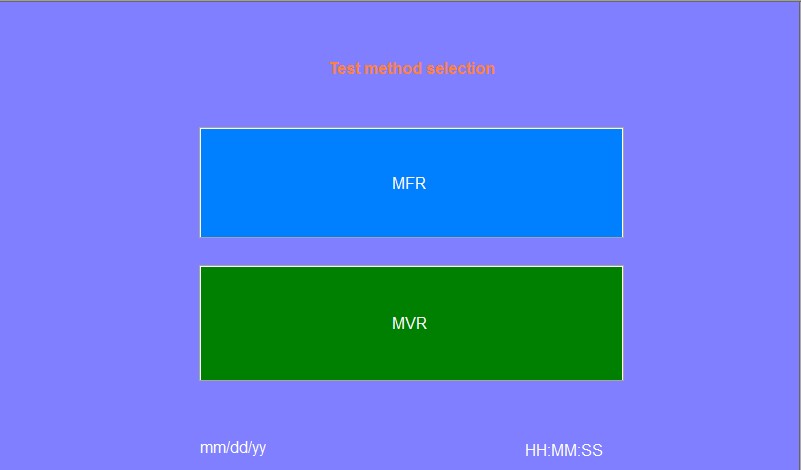

1. MFR &MVR test method

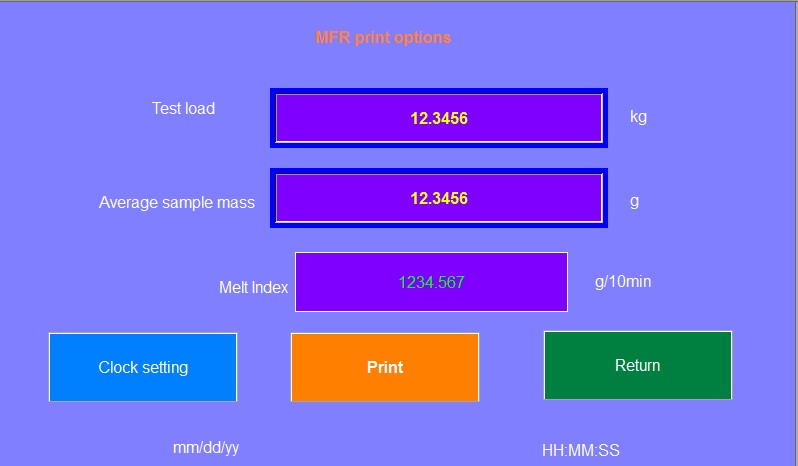

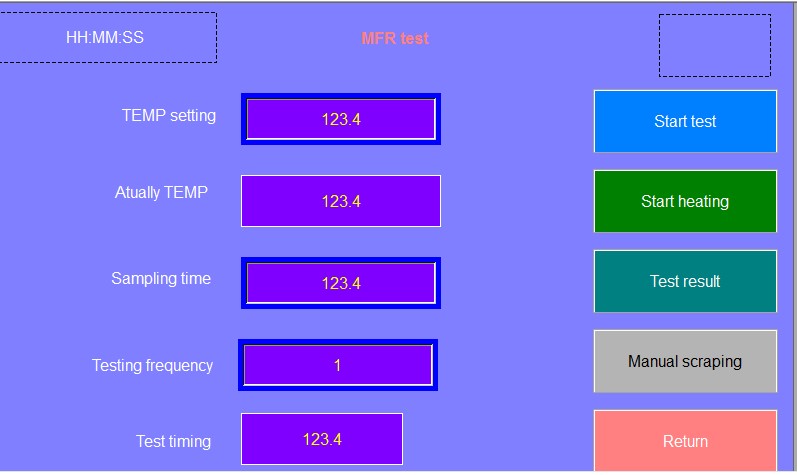

2. Touch screen display
3. with a built-in printer
4. Cut-off the extrusion automatically
5. Easy to operate

1. Characteristics and Usage
XNR-400D melt flow rate meter is designed and manufactured according to GB / T3682, ASTM D1238, JB / T5456, ISO1133 standards for the determination of thermoplastic melt mass flow rate (MFR) and melt volume flow (MVR). . The mass flow rate of the melt is measured by manual and automatic sampling and the balance is weighed. The volume flow rate of the melt is measured by a displacement sensor and an automatic timing system. The time required for the piston to move a specified distance is measured first, and then calculated according to the formula Volume flow rate. The final results of the two determination methods are printed out by a micro printer.
The instrument uses color touch screen display, PLC microcomputer control, modular circuit, accurate measurement data, simple operation, intuitive and clear, stable and reliable performance. It is not only suitable for polycarbonate (PC), fluoroplastics, Engineering plastics such as nylon are also used for testing plastics with lower melting temperatures, such as polyethylene (PE) and ABS resins. They are widely used in plastics production, plastic products, petrochemical industries, as well as colleges, scientific research units, and commodity inspection departments.

2. Standards-compliant
2.1 ISO 1133 Plastics- Determination of the melt MFR and MVR of thermoplastics.
2.2 GB/T 3682 Determination of the melt mass-flow rate (MFR) and the melt volume-flow rate (MVR) of thermoplastics



3. Technological indicators：
(1) Extrusion material part:
Die inner diameter Φ2.095 ± 0.005mm
Die length 8.000 ± 0.025 mm
Barrel inner diameter Φ9.550 ± 0.007 mm
Barrel length 152 ± 0.1 mm
Piston rod diameter 9.474 ± 0.007 mm
Piston rod head length 6.350 ± 0.10 mm
(2) Test load quality (level eight)

Level	Mass kg	Weight  N	Composition
Level 1	0.325	3.187	Piston rod + weight tray
Level 2	1.200	11.77	0.325+0.875 Weight
Level 3	2.160	21.18	0.325+1.835 Weight
Level 4	3.800	37.26	0.325+3.475 Weight
Level 5	5.000	49.03	0.325+ 4.675 Weight
Level 6	10.000	98.07	0.325+4.675 Weight+5.000
Level 7	12.000	122.58	0.325+4.675 +5.000+ 2.500
Level 8	21.600	211.82	0.325+0.875+1.835+3.475+4.675+ 5.000+ 2.500+2.915












The relative error of the weight of the piston rod and the combined weight is not more than ± 0.5%
(3) Time range: 0 ～ 999s
(4) Temperature control range: 50 ～ 450 ℃, Accuracy: ± 0.2 ℃ Resolution: 0.1 ℃
(5) Sensor measurement range 0 ～ 40mm, accuracy ± 0.05mm
(6) Time measurement range: 0 ～ 999.99s, accuracy ± 0.1s
(7) Overall dimensions: (length × width × height) 550 × 370 × 600mm
(8) Weight (kg): 25kg weight of the host 21.6kg
