1. Product Introduction
Electronic universal testing machine is used for various thermosetting and thermoplastic plastics, the tensile modulus of elasticity, bending modulus of elasticity, compression modulus, yield strength, tensile strength, breaking strength, elongation at break, compressive stress, compression of plastic pipes Determination of mechanical properties such as strain, shear, peeling, bracing, tearing, penetration, etc., suitable for materials in engineering plastics, reinforced nylon, modified plastics, plastics, profiles, plastic pipes, plastic sheets and films, etc. Analysis and inspection.
The transmission part of the electronic universal testing machine adopts a full set of full digital AC servo system, high rigidity frame structure, and adopts the method of piecewise linear correction to ensure the high precision and high stability of the force value detection part, and can be equipped with a dual-axis large deformation extensometer and Small deformation extensometer; accurately measure the deformation within the distance between the markings of the sample. The unique shock absorption function of the main frame itself eliminates the need to install foundations.
The universal testing machine has beautiful appearance, high precision, low noise, easy operation, and its accuracy can reach level 1. It provides a variety of fixtures for users to choose.

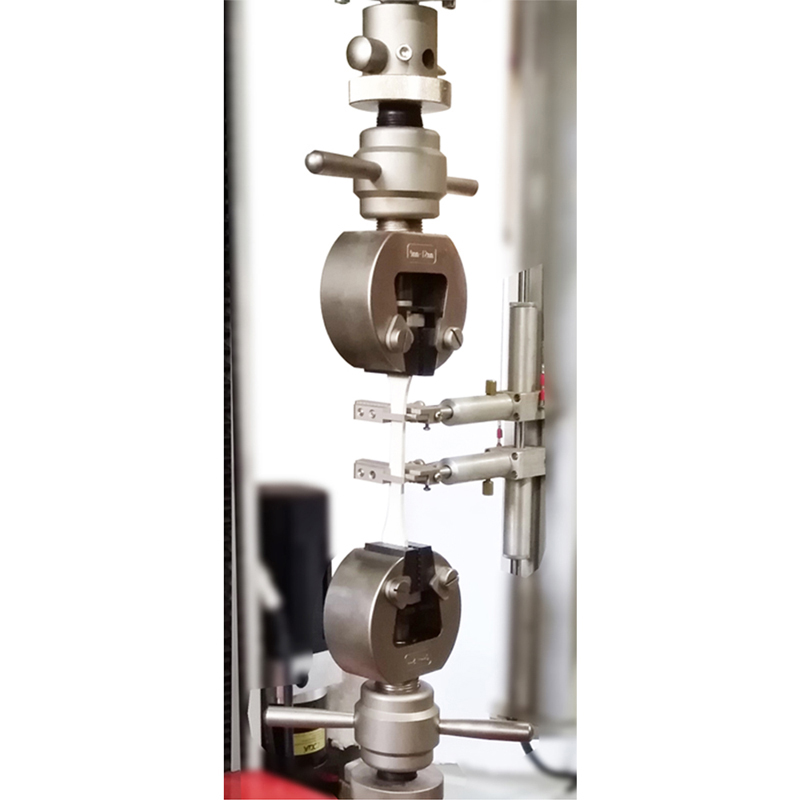

Strain measuring system
Equipped with a large deformation extensometer, it has good bidirectional followability and strong followability, which can accurately measure the deformation of the sample within the distance between the sample markings, so as to obtain more accurate yield strain, fracture strain, and stress at X%.

2. Test Standards
ISO 604-2002 Plastics - Determination of compressive properties
ISO 178-2004 Plastics -- Determination of flexural properties
ISO 1209-1-2007 Rigid cellular plastics - Determination of flexural properties - Part 1: Basic bending test
ISO 1209-2-2007 Rigid cellular plastics - Determination of flexural properties - Part 2: Determination of flexural strength and apparent flexural modulus of elasticity
ASTM D 638-2008 Standard Test Method for Tensile Properties of Plastics
3. Technical Parameters

Maximum test force	5KN / 10KN / 20kN
Test machine level	Class 1.0
Test force measurement range	1%～100%FS
Relative error of test force indication	±1%
Test power resolution	1/200000
Deformation measurement range	0.4～100％FS
Relative error of deformation indication	≤±0.5%
Deformation resolution	1/200000
Large deformation measurement range	5～800mm
Relative error of large deformation indication	≤±0.50%
Large deformation resolution	0.0125mm

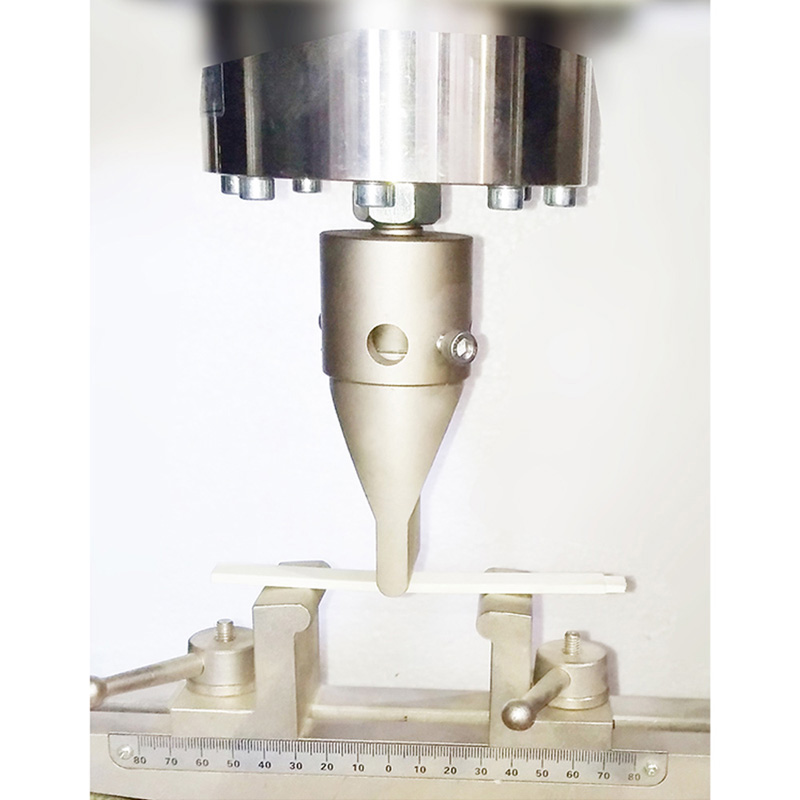

Bending deflection measuring instrument measurement	15mm
Resolution of bending deflection measuring instrument	0.001mm
Accuracy of bending deflection measuring instrument	0.005mm
Relative error of beam displacement indication	≤±0.50%
Displacement resolution	0.001mm
Relative error of deformation control rate	When the rate is less than 0.05% FS, it is within ±2% of the set value; When the rate is ≥0.05%FS, it is within ±0.5% of the set value
Beam speed adjustment range	0.001～500mm/min
Relative error of beam speed	When the speed is less than 0.05 mm/min, within ±1.0% of the set value; When the speed is ≥0.05 mm/min, within ±0.5% of the set value;
Effective test width	420mm
Maximum stretching stroke	800mm
Maximum compression space	1000mm
power supply	220VAC-15%～220VAC+10% 50Hz 1kVA
Host size	750mm×480mm×2000mm
Host weight	About 300kg

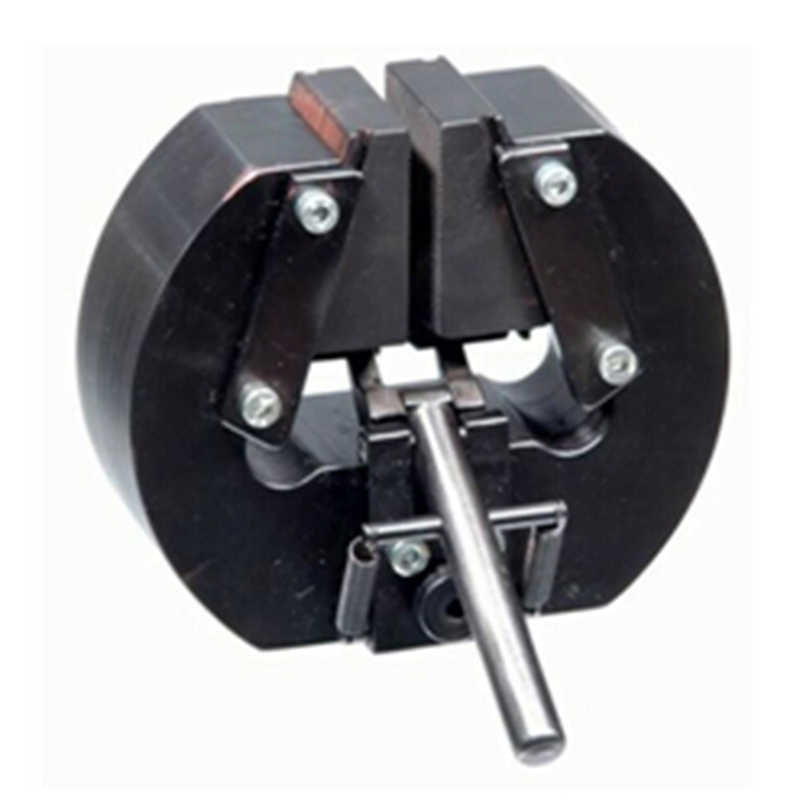

Standard configuration	One set of tensile and bending clamps, one set of 500N and 20kN sensors
Import server	One set each for Fuji Electric and Server
Imported sensor	American CELL
Imported reducer	Germany Niussdart reducer
Taiwan Ball Screw	ZNZ Ball Screw 3210
Imported encoder	Omron
