1. Application :

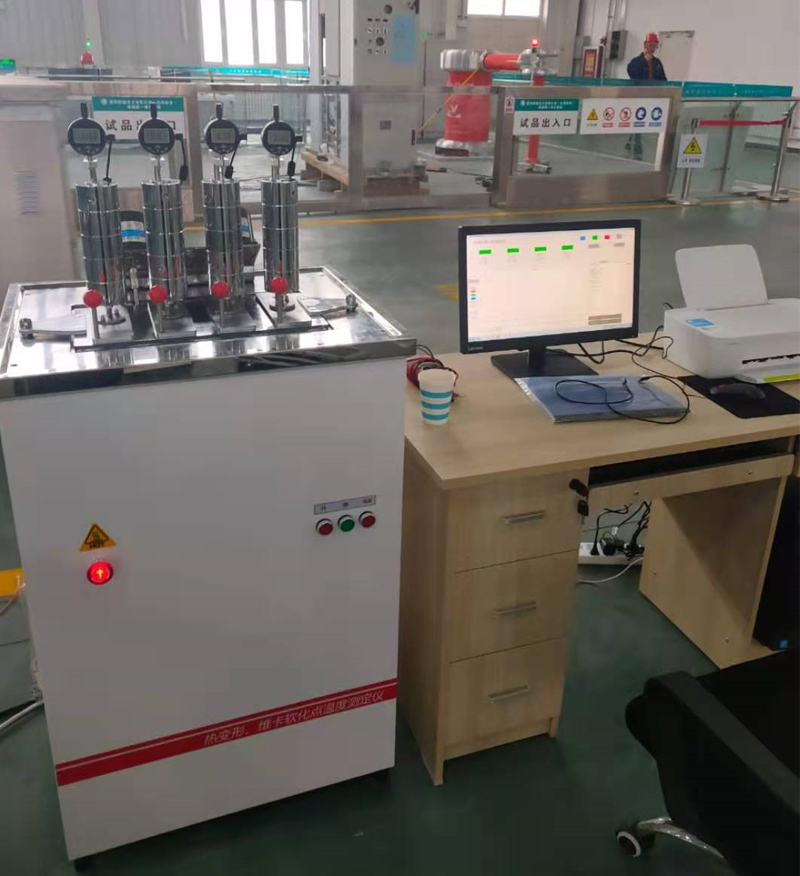

VRW-300CL-4 is mainly used to measure the thermal deformation temperature and Vicat softening point temperature of non-metallic materials such as plastics, hard rubber, nylon, electrical insulating materials, long fiber reinforced composites, high strength thermosetting laminates and so on. Easy to operate and precise to control, it is a highly intelligent testing instrument, which is widely used in Colleges and universities, scientific research units and product quality supervision and inspection units.
The machine uses a Chinese operating interface to monitor the test temperature, draw the curve of temperature and deformation in real time, print the test report, and realize the historical storage. When the mouse clicks on any part of the deformation and temperature curve, the interface will automatically display the deformation and temperature value. High precision displacement sensor (intelligent remote micrometer) is selected to measure deformation.

2. Test Standards Complied:
ISO 306: 2013 Plastic – Thermoplastic materials – Determination of Vicat Softening Temperature (VST)
ISO 2570 Determination of Vicat Softening Point temperature for PVC pipe and
ISO 75 Plastic – Determination of temperature of deflection under load
ASTM D1525 Standard Test Method for Vicat Softening Temperature of Plastic
ASTM D648 Standard Test Method for Deflection Temperature of Plastic Under Flexural Load in the Edgewise Position
GB/T 8802-2001 determination of Vicat Softening Point temperature for thermoplastics pipe and accessories.
Other China test standards, such as GB/T 1633, GB/T 1634.1 GB/T-1634.2-2004

3. Technical Parameters:
Model: VRW-300CL-4
The temperature control range: room temperature ~ 300 °C;
Maximum temperature error: ± 0.5 °C;
Temperature rising speed: 50 C/h, 120 C/h, or between 50 and 120 C/h;
Temperature measurement point: 1;
Number of test frames: 4 working position
Deformation measuring instruments: high precision digital display micrometer;
Deformation measurement range: - 0.1-10 mm;
Maximum deformation error: +0.005mm;
Deformation resolution: 0.001 mm;
Supporting span of specimen: 64mm, 100mm;
It has software upper limit temperature protection function and hardware upper limit temperature protection function (temperature switch imported from Korea, with current of 30A, not pseudo protection, heating power of 4000W, can ensure temperature rise to 300 degrees at 120 C/h speed)
The thermal expansion coefficient of the specimen frame is less than0.005 / 100 °C(emphasis, directly affecting experimental results);
MCU and PC distributed control system are adopted in the control mode.
It has an automatic lifting system for the sample stand.
Use medium: methyl silicone oil or transformer oil;
Cooling mode: natural cooling above 150 C, water cooling below 150 C or natural cooling.



Features :
1. Lifting System of Test Frame
The automatic lifting function of the test stand greatly facilitates the operation of the test, improves the test efficiency and avoids personal injury.
2. Advanced Control System
With super high stability, it is easier to install, test and analyze.
3. Humanized Software Control System
Simulated digital tube displays temperature and displacement, draws test curves, provides a variety of coordinate curves, centralizes data management, and can analyze test data, print test curves, test data and test reports.
4. Four-fold safety protection of condyle
Mechanical temperature upper limit protection switch, software temperature upper limit protection, automatic test stop and administrator operating keys and other multiple hardware and software safety design, to ensure the safe and stable operation of the test.
5. High Precision Measurement and Control System
High performance temperature sensor and advanced capacitive grating digital micrometer are used to accurately measure the small changes of the sample. Advanced PID algorithm and all-photoelectric isolation phase modulation module are used to control the temperature rise, which ensures that the temperature rise rate error is less than 0.5 C.
