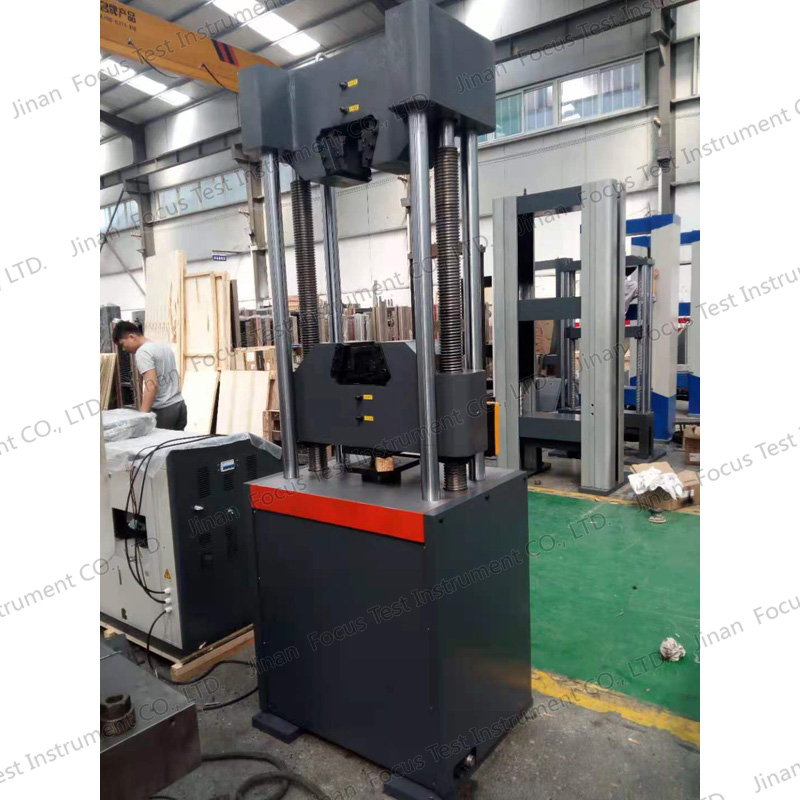

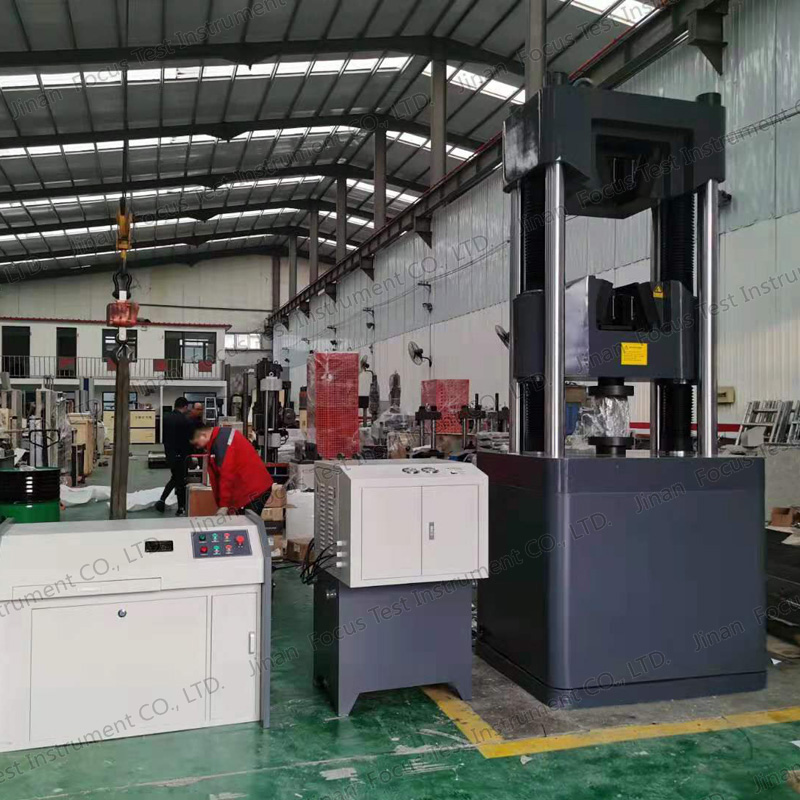

WAW-D Computer controlled electro-hydraulic servo universal testing machine
NO:30Ton, 60Ton, 100Ton, (two columns two screw)
Share With:
Easy ways to get the answers you need. Send E-mail WhatsAPP/Wechat
+86-15254140530
The oil cylinder mounted under the host, gap sealing fuel tanks, two pillars, two screw frame structure (commonly known as four-post). Space for tensile tests on test, the test space can be used for compression, flexural and shear test (need to increase the corresponding aids). Lower beam movements using cycloid reducer, sprockets, chains, screw vice drive, to achieve tension, compression adjustment space. Main oil cylinder honing cylinders, hydraulic force sensors (precision load cell force measurement to be added, is a special configuration). Automatic hydraulic clamping system to facilitate clamping the sample, good stability. Configuration-related samples can be completed accompanied steel, metal samples, steel hinge line (host needs to be changed), cables, fasteners, concrete and other tests.
| The main technical parameters | WAW - D Series | ||||
| 300 | 500 | 600 | 1000 | 2000 | |
| The biggest test of（KN） | 300 | 500 | 600 | 1000 | 2000 |
| Force range | 4%～100%(Or 1% to 100% precision) | ||||
| Test Force showed the relative error | Better than ± 1% of indicated value (≤ ± 0.5% precision) | ||||
| Deformation Accuracy | ±1%(Or ± 0.5% precision) | ||||
| Stretching space（mm） | 550 | 550 | 550 | 650 | 800 |
| Compression space（mm） | ≥500 | 650 | |||
| Clamping methods | Automatic clamping or manual clamping | ||||
| Clamping diameter of round specimen（mm） | Φ10-Φ32 | Φ13-Φ40 | Φ13-Φ40 | Φ26-Φ60 | Φ40-Φ60 |
| Flat plate specimen thickness（mm） | 0-15 | 0-15 | 0-30 | 0-40 | 0-40 |
| Shear specimen diameter（mm） | 10(Optional, non-standard) | ||||
| Upper and lower platen size（mm） | Φ160(Alternative 204 × 204) | ||||
| The maximum distance between the fulcrum bending | Optional | ||||
| Pump motor power | 1.5KW | ||||
| Beam moves up and down motor power | 1KW | ||||
| Deformation measurement device | Photoelectric encoder or electronic extensometer | ||||
| Security devices | Software protection and mechanical limit protection | ||||
