1. Production Simple Descriptions:

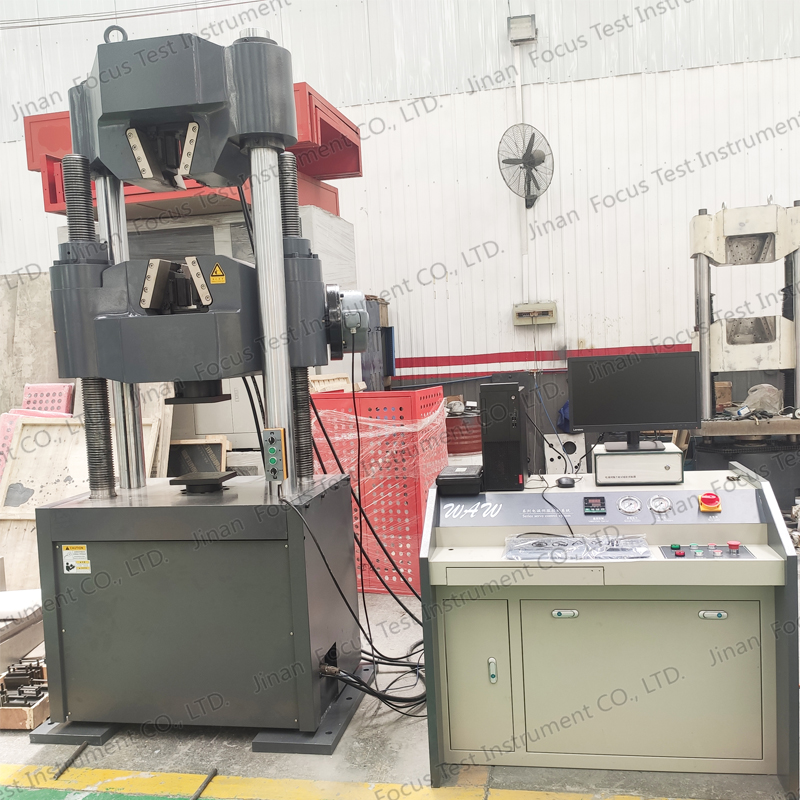

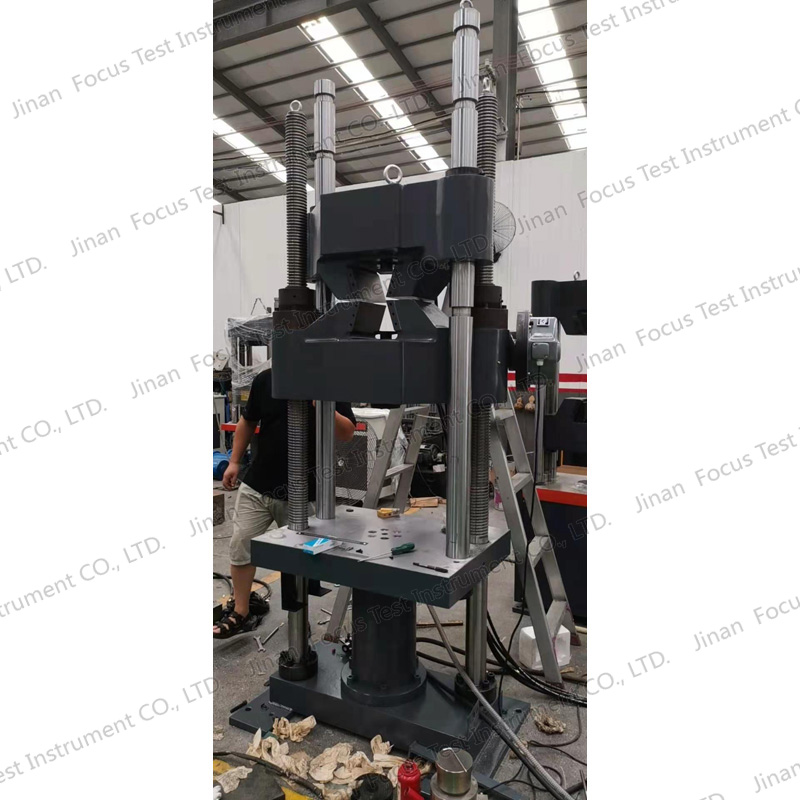

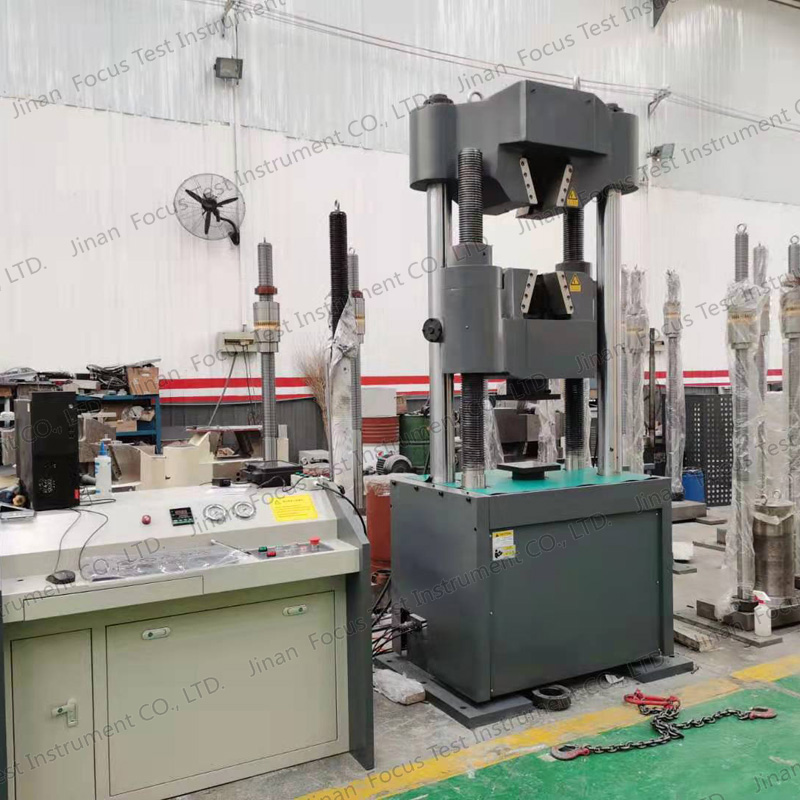

WAW-C series product, it is worm gear drive structure.  the oil cylinder mounted under the host, Gap seals cylinder, two columns, two screw frame structure (commonly known as four-post). Space for tensile tests on test, the test space can be used for compression, flexural and shear test (need to increase the corresponding aids). Lower beam movements using disk-type motor driven worm, Ball Screw drive, to achieve tension, compression adjustment space. Main oil cylinder honing cylinders, hydraulic force sensors (precision load cell force measurement to be added, is a special configuration). Automatic hydraulic clamping system to facilitate clamping the sample, good stability. Configuration-related samples can be completed accompanied steel, metal samples, steel hinge line (host needs to be changed), cables, fasteners, concrete and other tests.

2. Main Technical Parameters


MODEL	WAW-300C	WAW-600C	WAW-1000C
Max. Loading Force	300 KN	600 KN	1000 KN
Structure	4 Colums + 2 Screws, worm gear drive
Loading Test Accuracy	Class 1.0  (Class 0.5 optional)
Loading Range of Test Force	2% - 100% FS  (0.4% - 100% FS)
Piston Stroke	250 mm	200 mm	200 mm
Effective Tensile Test Space	600 mm	600 mm	600 mm
Effective Compress Space	500 mm	500 mm	500 mm
Net Distance between Column	530 mm	650 mm	650 mm
Distance between Column	600 mm	740 mm	760 mm
	Hydraulic Automatic Clamping Tensile Fixture
Clamping diameter of round specimen	Φ10-Φ32mm	Φ13-Φ40mm	Φ26-Φ60mm
Flat plate specimen thickness	0-15mm	0-30mm	0-40mm

■ Host screw gap adjustment mechanism with the moving beam with a reasonable working position and stress state.
■ customized according to the requirements of the sample and configure related test space can be accompanied by complete sample reinforced steel hinge wire, cable, fasteners, concrete tests
■ Hydraulic clamping device can independently adjust clamping speed (configurable inching clamping device according to customer requirements)
■ You can choose according to the requirements of a load sensor or oil pressure sensor, effectively improve the test force measurement range and accuracy values.
■ fuel tank mounted under the host structure reduces the height of the center of gravity lower test to reduce the impact of the breaking machine damage.
■ can accurately measure the distance after moving beam with optical encoder.
■ integrated oil source design makes the machine more compact and reasonable, reduce floor space.
■ provides manual and automatic dual control system, choose the operating mode.
■ built-in integrated technology-based controller card, reducing wiring, improve test real-time control and real-time acquisition capabilities, improve product stability.
