The oil cylinder mounted under the host, gap seals cylinder, four-column, two-screw frame structure (commonly known as six columns). As a result of four-column frame structure, compression test when sample sizes bigger, and excellent stability of the host structure. Space for tensile tests on test, the test space can be used for compression, flexural and shear test (need to increase the corresponding aids). Lower beam movements using cycloid reducer, sprockets, chains, screw vice drive, to achieve tension, compression adjustment space. Main oil cylinder honing cylinders, hydraulic force sensors (precision load cell force measurement to be added, is a special configuration). Automatic hydraulic clamping system to facilitate clamping the sample, good stability. Configure the relevant test to be completed accompanied steel, metal samples, steel hinge line (the host computer changes), cables, fasteners, concrete samples.

The main technical parameters	WEW-F Series
	300	500	600	1000	2000
The biggest test of（KN）	300	500	600	1000	2000
Force range	4%～100%(Or 1% to 100% precision)
Test Force showed the relative error	Better than ± 1% of indicated value (≤ ± 0.5% precision)
Deformation Accuracy	± 1% (or ± 0.5% precision)
Stretching space（mm）	550	550	550	650	800
Compression space（mm）	≥500				650
Clamping methods	Automatic clamping
Clamping diameter of round specimen（mm）	Φ10-Φ32	Φ13-Φ40	Φ13-Φ40	Φ26-Φ60	Φ40-Φ60
Flat plate specimen thickness（mm）	0-15	0-15	0-30	0-40	0-40
Shear specimen diameter（mm）	10(Optional, non-standard)
Upper and lower platen size（mm）	Φ160(Alternative 204 × 204)
The maximum distance between the fulcrum bending	Optional
Pump motor power	1.5KW
Beam moves up and down motor power	1KW
Deformation measurement device	Photoelectric encoder or electronic extensometer
Security devices	Software protection and mechanical limit protection



Product type static hydraulic testing systems

The standard: GBT228 ISO: 15630-1,6892 ASTM: A370, C39, C469, E8 other: EN 10002-1

Owned material metal: Industry metallurgical industry, quality inspection centers, universities, industrial supplies, automotive / rail / ship building, aviation industry

Test type stretching: compression, bending, shear

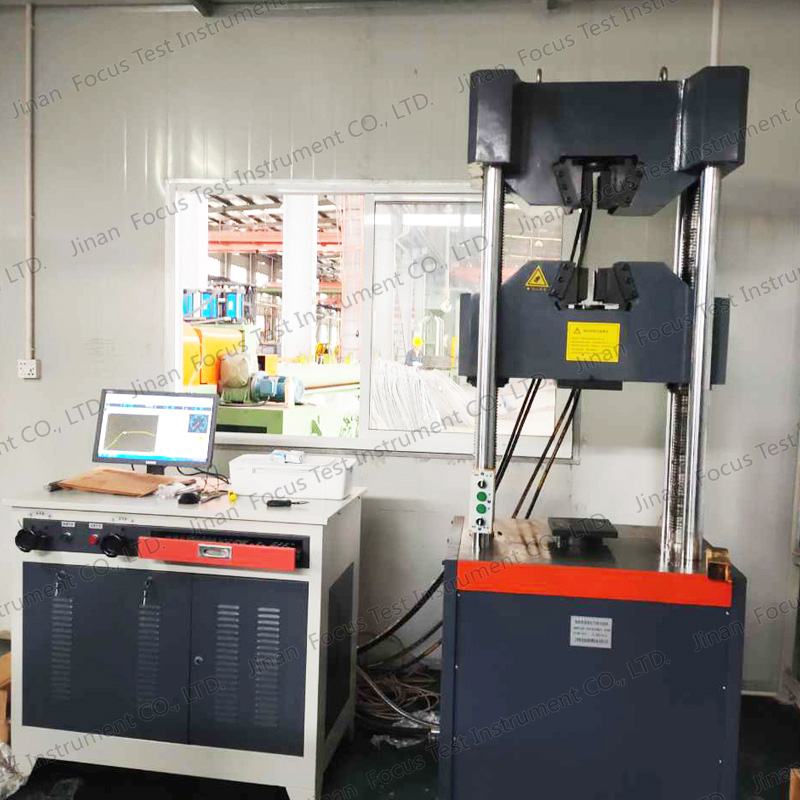

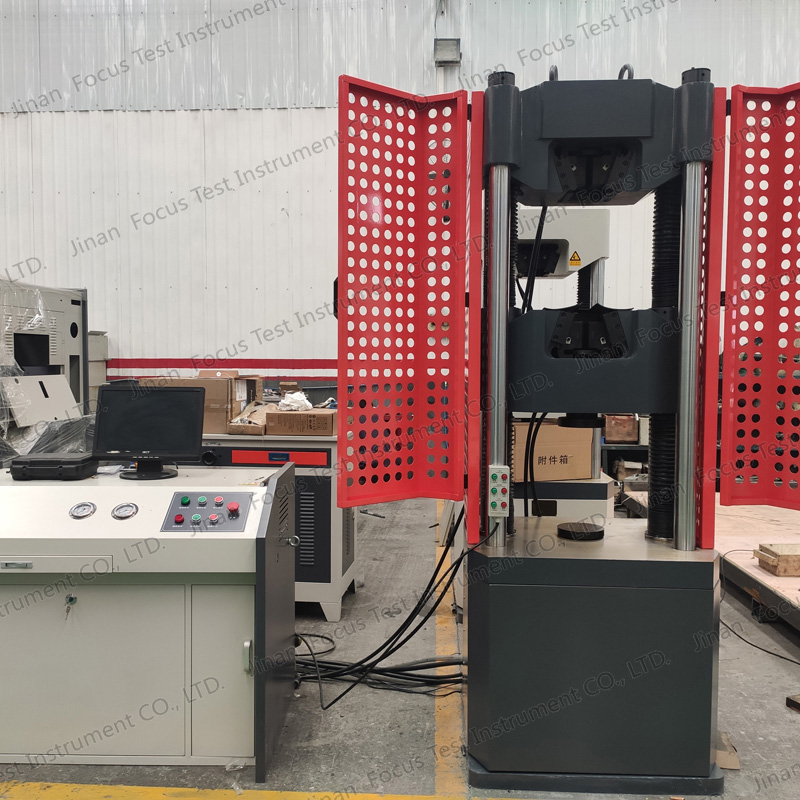

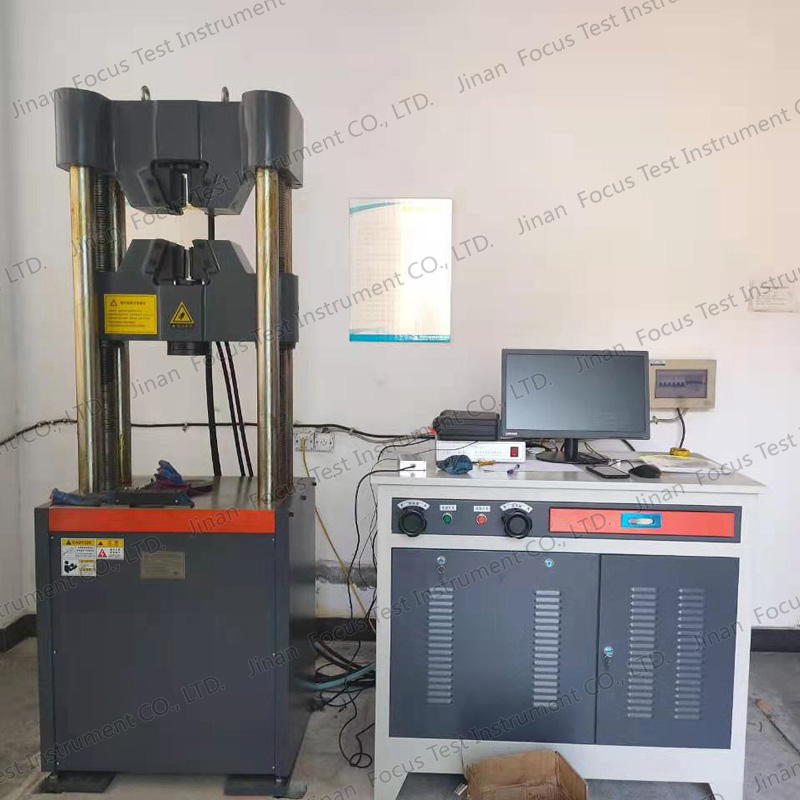

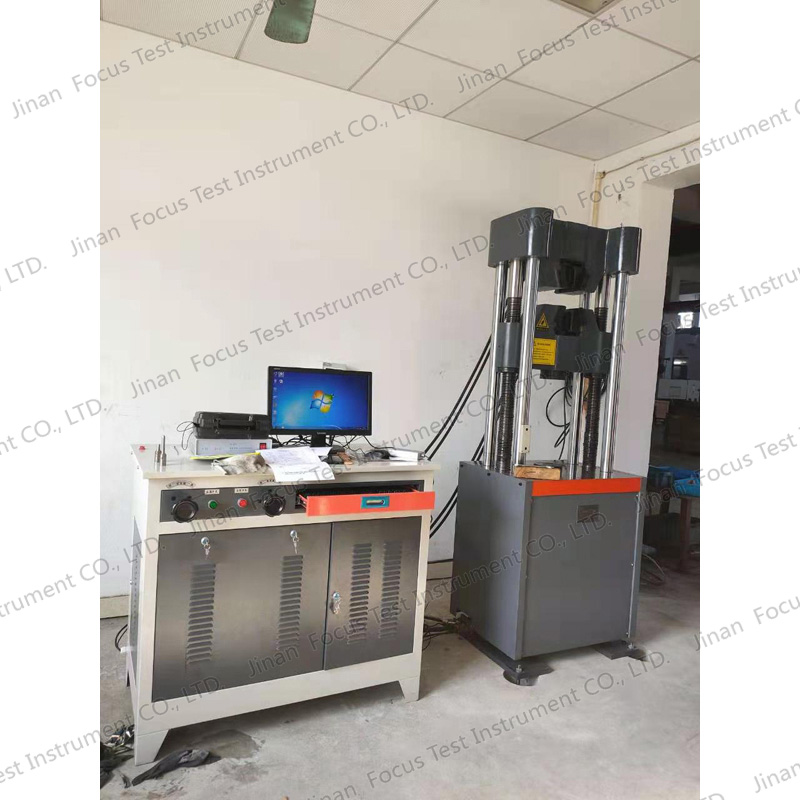

■ piano desktop control cabinet. Manual control testing process (for trial loading, unloading), the computer displays the relevant data and reports can be printed correlation curves. Improved silent hydraulic pressure source, damping fuel tank, hydraulic source of HMB can achieve low noise, beautiful, easy to maintain and easy to repair.customized according to the requirements of the sample and configure related test space can be accompanied by complete sample reinforced steel hinge wire, cable, fasteners, concrete tests
■ Hydraulic clamping device can independently adjust clamping speed (configurable inching clamping device according to customer requirements)
■ You can choose according to the requirements of a load sensor or oil pressure sensor, effectively improve the test force measurement range and accuracy values.
■ fuel tank mounted under the host structure reduces the height of the center of gravity lower test to reduce the impact of the breaking machine damage.
■ can accurately measure the distance after moving beam with optical encoder.
■ integrated oil source design makes the machine more compact and reasonable, reduce floor space.
■ built-in integrated technology-based controller card, reducing wiring, improve test real-time acquisition capabilities, improve product stability.
