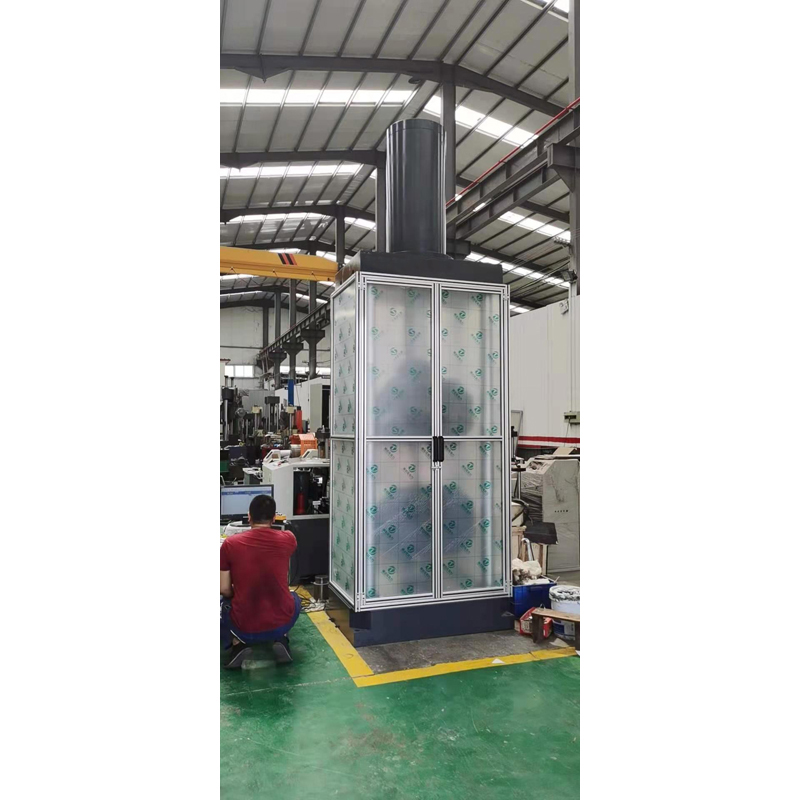

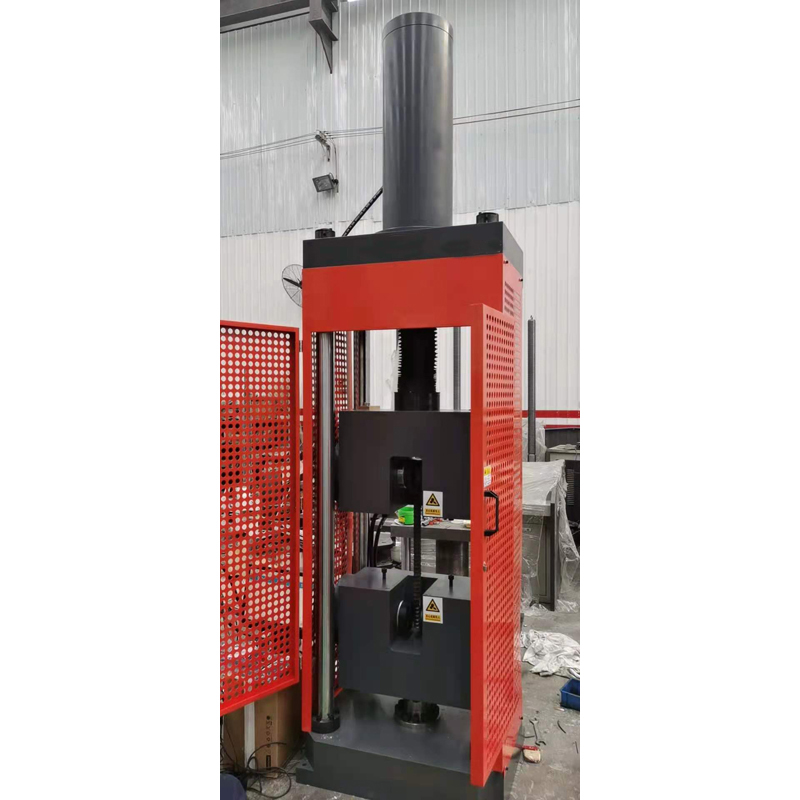

This applies to the steel industry, large quantities of metal materials, high-strength fast tensile test. Is a new generation of tensile testing machine, this machine is a single pull-type four-column, frame structure, two-way rapid rise in a cylinder space, falling, adjust tension and compression test space and two-way manual control, the machine uses a load sensor, precision test force and strain sensors, with full, regardless of file, has only one full resolution features. The main parts are imported to ensure its service life and precision.

Product number	WEW-600L	WEW-1000L		WEW-1500L		WEW-2000L
Structure type	Four Column single pull frame structure
The biggest test	600 KN	1000 KN		1500 KN		2000 KN
Test force measurement range	1%-100%FS
Test Force showed the relative error	Test force accuracy of ± 1% (0.5%)
Force Resolution	1/500000
Deformation measurement device	Optical encoder or electronic or non-contact extensometer extensometer
Deformation indication relative error	± 1% (± 0.5% ≤ indicated value)
Displacement measuring device	Encoder
Displacement relative error	± 1% (± 0.5% ≤ indicated value)
Displacement resolution（mm）	0.001
Pistons maximum speed	0.05-200mm / min stepless / or custom
Control method	Manual control
Control Mode	Manual control mode
Security devices	Test force and position control with hardware and software overload protection and high oil pressure protection
Effective tension space（mm）	650(May heightening)
Effective compression space（mm）	550(May heightening)
Clamping	Hydraulic automatic clamping
Clamping methods	Wedge clamp mode or manner of clip holder
Clamping diameter of round specimen（mm）	Φ13 - Φ40		Φ26 - Φ60		Φ40 – Φ60		Φ40-Φ80
Flat plate specimen thickness（mm）	0-10		0-40		20-60		40-60
Flat plate specimen width（mm）	80		80		100		120
Footwall size（mm）	325×325
Curved support roller spacing（mm）	600
Bent branch roll width（mm）	140
Piston stroke（mm）	500(Can also be customized according to user requirements)



Product type static hydraulic testing systems

The standard GB: T228 ISO: 15630-1,6892 ASTM: A370, E8 other: EN 10002-1

Owned material metal: parts,Industry metallurgical industry, quality inspection centers, universities, industrial supplies, automotive / rail / ship manufacturing, aviation manufacturing, biomedical

Test type stretching:compression, bending, shear

◆ applied to metal rods, tensile test plates, steel tensile test, strand tensile test (to be ordered related accessories), High strength, high hardness of the metal material tensile test, meet GB / T 228-2002 metal tensile test method standards, to meet the GB / T 5224-1995 standard prestressing strand for strand tensile test requirements .

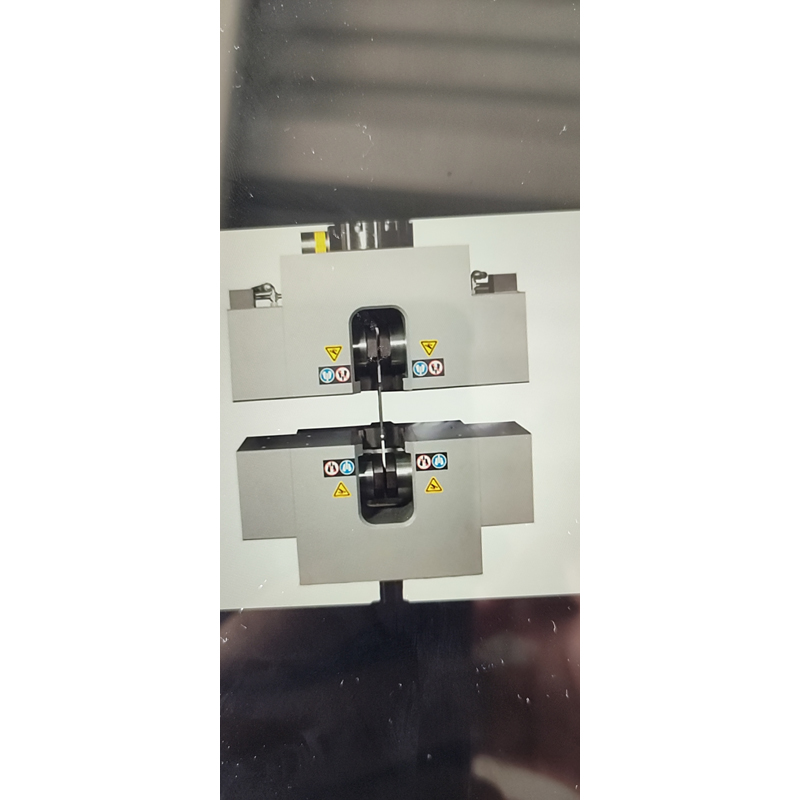

◆ The product can be used to clip the international advanced hydraulic technology to solve large load, high-volume pull out power problems that exist in the test.For particularly difficult sample holder high strength, high hardness materials and steel cable, etc. are able to ensure good gripping effect. Hydraulic flat push clamping aids, two clamping cylinders synchronized gripping, whether the specimen or sample fine and thin and thick rough are able to ensure accurate concentricity. The device also solves the wedge clamping jig after the initial force of the hand specimen sample problem.
◆ for Sample: sheets, rods and so on.
