1.Main application

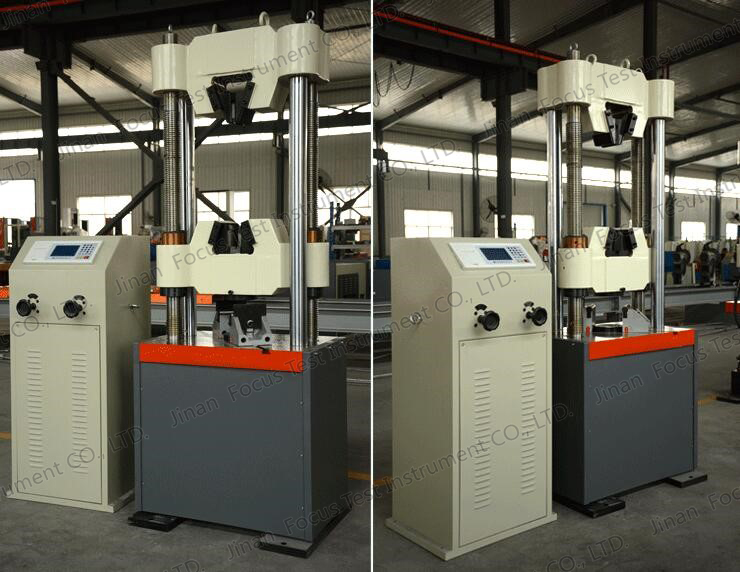

The machine adopts hydraulic loading, manual control, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, and flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

2. Main Technical Parameters:

MODEL		WES-300D	WES-600D	WES-1000D
Max. Loading Force		300 KN	600 KN	1000 KN
Control Method	Digital  Display
Structure		4 Colums + 2 Screws, worm gear drive
Loading Test Accuracy		Class 1.0
Loading Range of Test Force		2% - 100% FS
Piston Stroke		200 mm	200 mm	200 mm
Effective Tensile Test Space		600 mm	600 mm	600 mm
Effective Compress Space		500 mm	500 mm	500 mm
Net Distance between Column		450 mm	450 mm	450 mm
Clamping method		Hydraulic Automatic Clamping Tensile Fixture
