1. Descriptions & Applications:

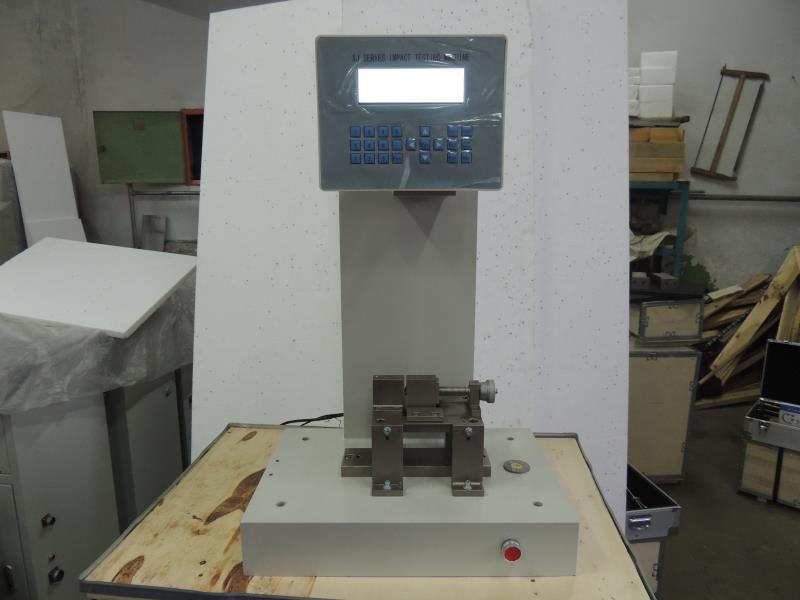

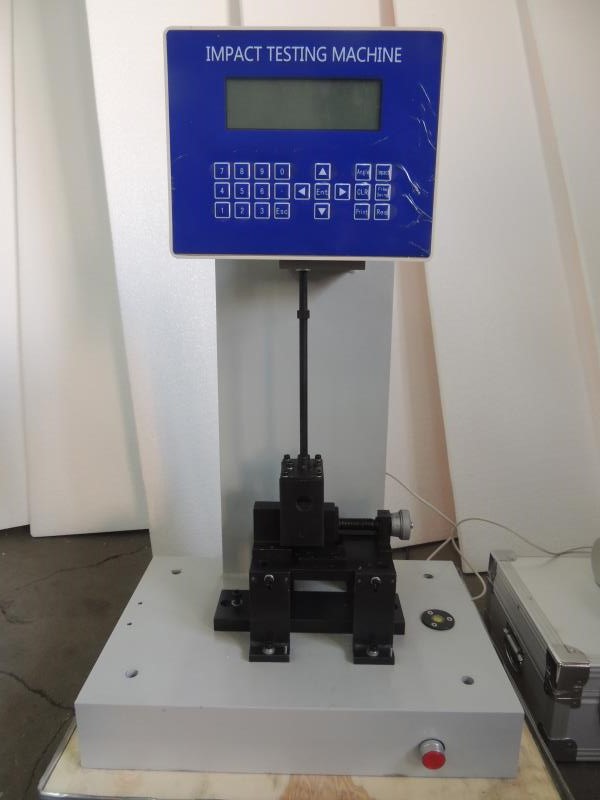

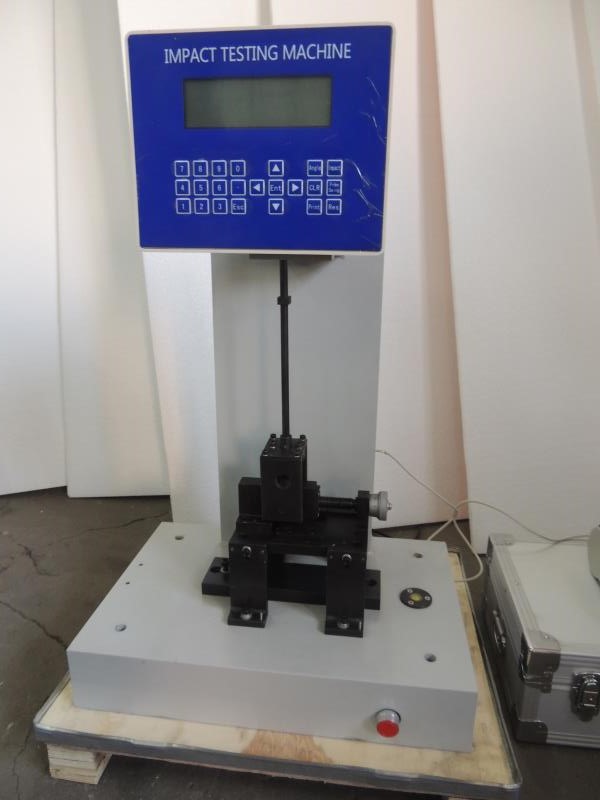

CHARPY & IZOD COMBINATION IMPACT TESTING MACHINE model XJ-50Z is a digital indicated, electronic releasing pendulum testing machine. Functioning semi-automatically. The complete frame has made tense losing processing to guarantee its intensity. Be applicable for non metal material impact test such as, hard plastic, reinforced fiber compound material, nylon, glass fiber, ceramics as well as insulated materials etc. It has been widely adopted by many Institute, universities and inspection centers.

The model XJ-50Z CHARPY & IZOD IMPACT TESTER conformed to the following test standards:
International: ISO179 Charpy impact test methods
National: GB/T1043 Hardened plastic Charpy impact test method
Machine industrial standard: JB/T8762 Plastic impact testing machine

CHARPY IMPACT TESTING

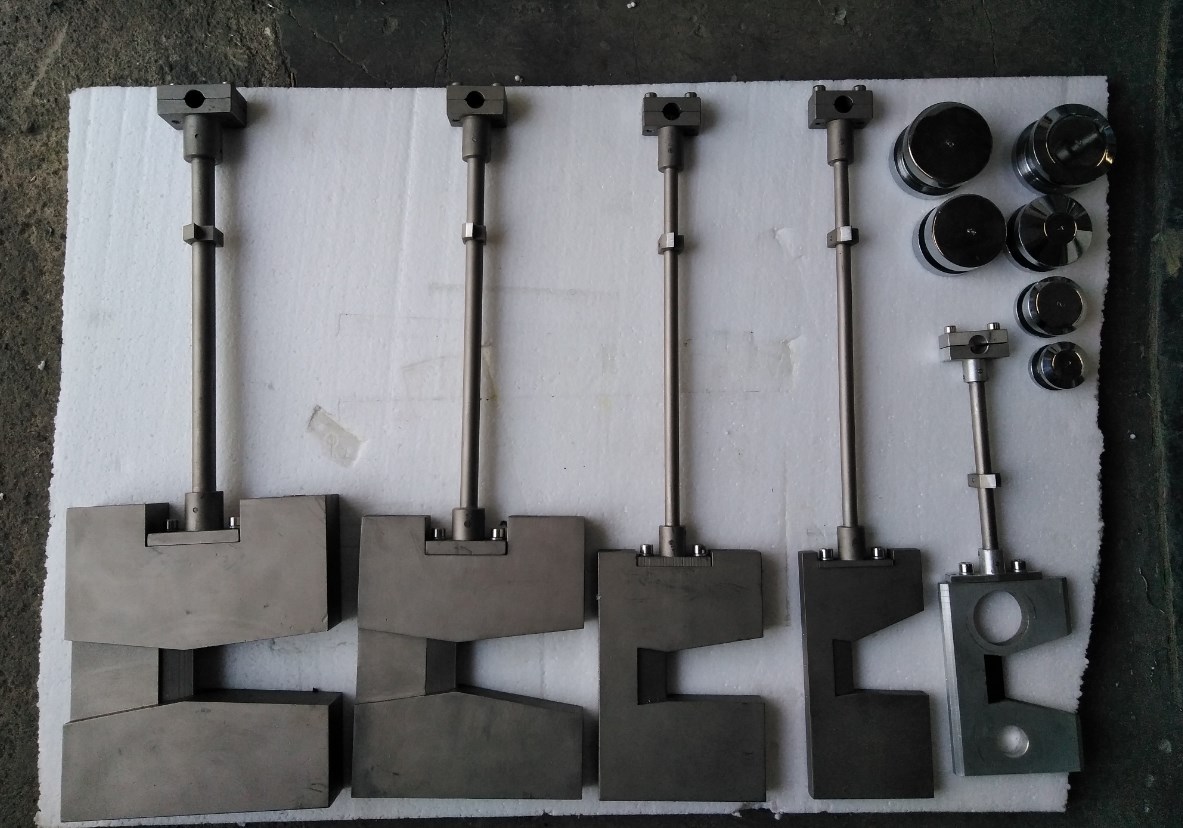

1、Impact energy and Impact moment:

Energy	1J	2J	4J	5J	7.5J	15J	25J	50J
Moment	0.516Nm	1.031Nm	2.062Nm	2.578Nm	3.866Nm	7.733Nm	12.889Nm	25.777Nm

2、Impact velocity: 2.9m/s ,3.8m/s。
3、Raising angle 160°。
4、Impact semidiameter (from axes to impact edge) 221mm , 380mm。
5、Anvil angle semidiameter R=1mm
6、Impact edge angle 30°
7、Impact edge semidiameter R=2mm


 IZOD IMPACT TESTING

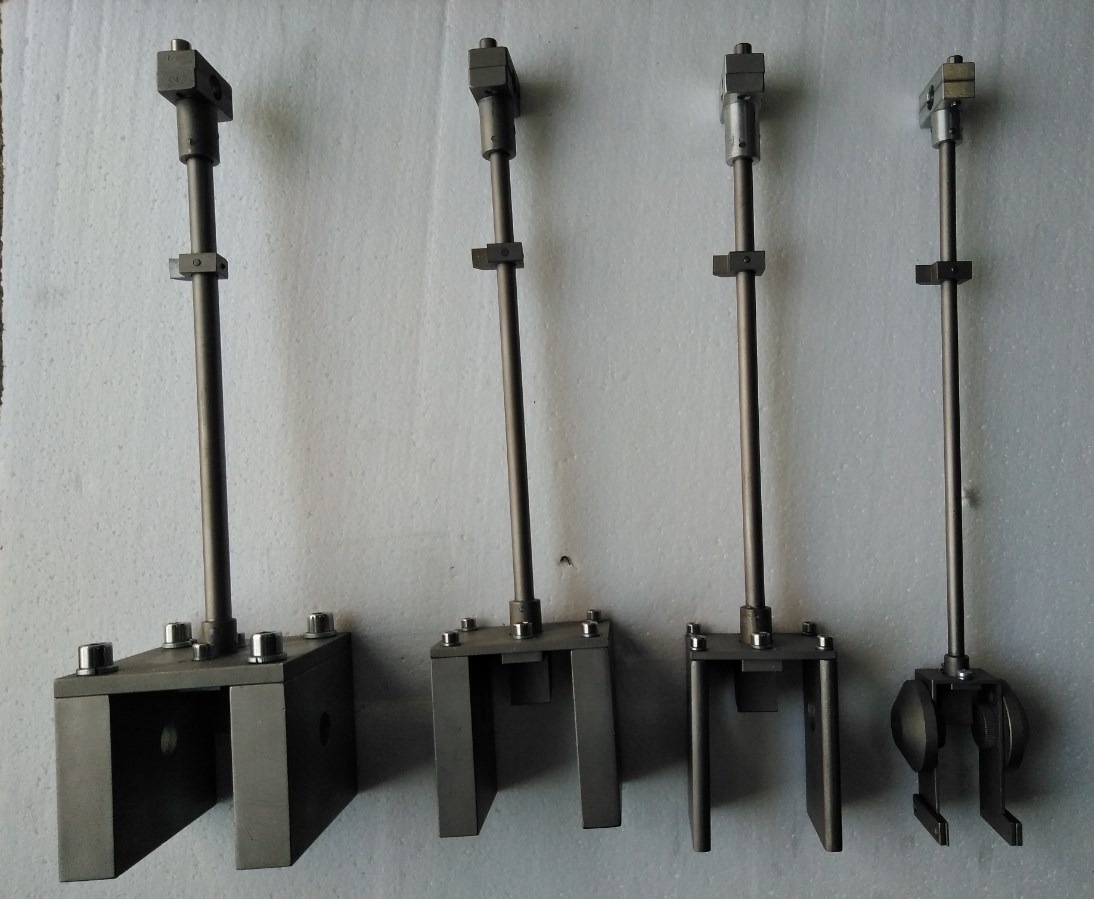

1、Impact energy and Impact moment:

Energy	1J	2.75J	5.5J	11J	22J
Moment	0.5155Nm	1.4177Nm	2.8355Nm	5.671Nm	11.3419Nm

2、Impact velocity: 3.5m/s。
3、Raising angle 160°。
4、Impact semidiameter (from axes to impact edge) 322mm。
5、Anvil angle semidiameter R=0.2mm
6、Impact edge angle 30°
7、Impact edge semidiameter R=0.8mm
