1.Simple Introduction
This series of pipes and pipe fittings sealing fixtures are mainly used for the clamping and sealing of pipe samples such as PVC, PE, PP-R, ABS, composite pipes for hydrostatic test, blasting test, negative pressure test, etc.

2.Test Standards
Comply with GB/T 6111, GB/T 15560-95, GB/T 18997.1, GB/T 18997.2, ISO 1167-2006, ASTM D1598-2004, ASTM D1599 and other standards.

3.Product Features

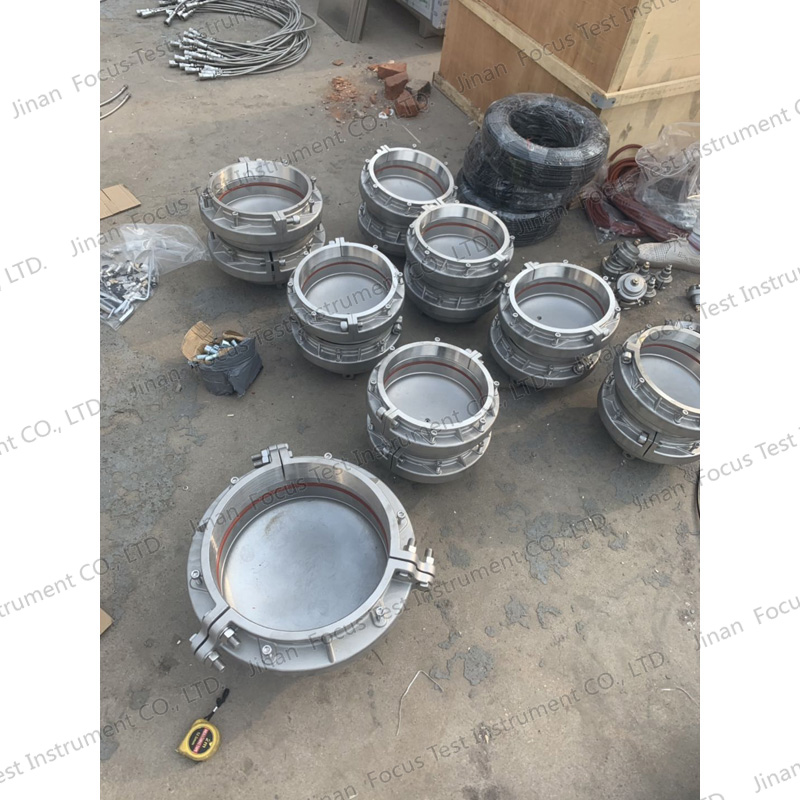

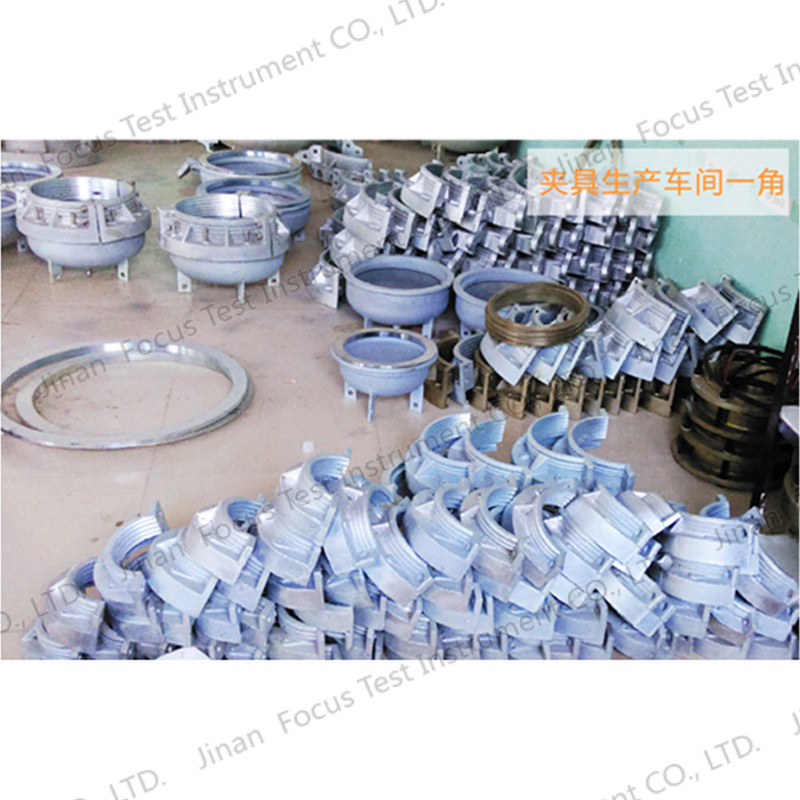

3.1 This series of sealing fixtures are precision-machined and casted in the A-type radial sealing method. They are made of high-quality stainless steel materials. The supporting parts are also made of stainless steel materials. They have extremely high compressive strength, long-term use, no rust, and pressure up to 20MPA.
3.2 Patented technology product, its structure is optimized and reasonable, the sealing performance is excellent, the installation is convenient, and its clamping success rate reaches 100%.
3.3 The closed end of the clamp is designed with a drum structure, with a large force area, small pressure bearing, and thin wall, which reduces the overall weight of the clamp (lightweight design, easy to handle and install); the clamping frame and the specimen contact surface is serrated Shape, increase the clamping force, avoid the occurrence of specimen detachment (high clamping success rate), the axial deformation of the "○" seal ring is not affected by the clamping force between the clamping frames (to avoid leakage ), so that the overall sealing effect is good, the weight is light, easy to install and disassemble, and save time and effort.
3.4 Strong versatility, the standard interface is not only suitable for this host, but also can be used with other international brands of testing machines.

Specification: D16-1200mm
Connector size: M12*1.25
