1. Functions：

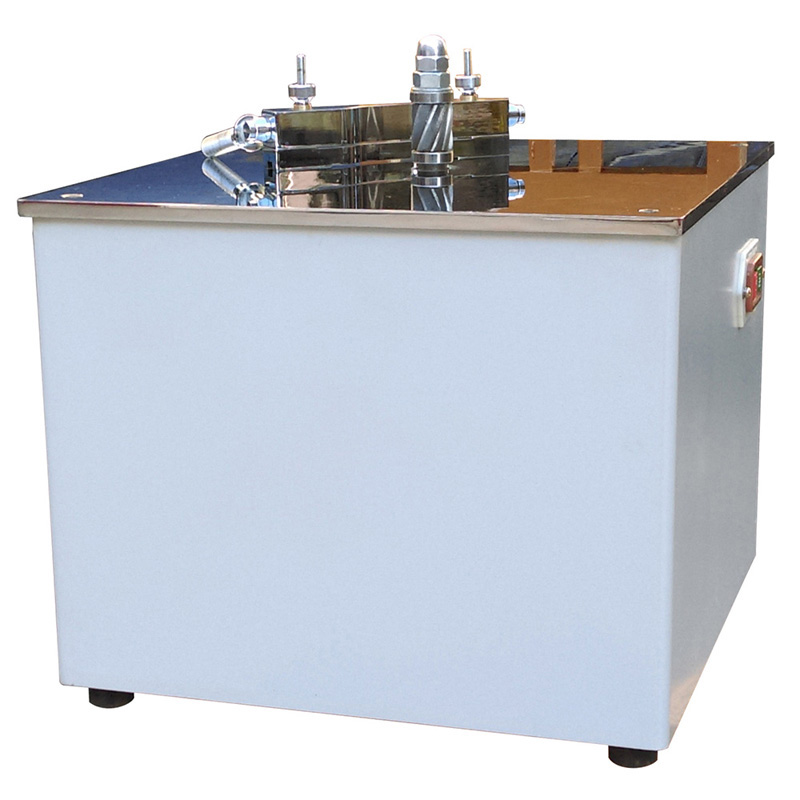

XYZ-20 dumbbell specimen maker adopts machinery machining means and prepares all kinds of non-metal materials to do the tensile testing. It is the dedicated equipment by using the standard dumbbell type sampler. The samples prepared by the machine accord with the request of GB 1040 or GB/T 9865.1 all kinds of dimension and technology of all kinds of samples.

2. Standards-compliant：
2.1 ISO 5893 Rubber and plastics test equipment; tensile, flexural and compression types (constant rate of traverse); description
2.2 ISO 7500 Metallic materials - Verification of static uniaxial testing machines - Tension creep testing machines - Verification of the applied force
2.3 ASTM D695 Compressive Properties of Rigid Plastics
2.4 ASTM D790 Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials


3. Technical Parameters：

Model	XYZ-20
Thickness of specimen	1-20mm
Power and voltage	Alternating current(AC) 380V+10%，50Hz
Power	370W
Dimensions of work table	400*400mm
Weight	About 85kg
